Hose/Assembly VAC White 15ft NCG M/DISS N-G BCG
0231-1521-812 | |
0231-1518-812 | |
Anesthesia Delivery | |
Other Anesthesia Delivery | |
GE HealthCare | |
N/A | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Aesthetic in appearance
- Connector symbols conform to Compressed Gas Association (CGA) V-5 standards
- Colors conform to CGA C-9 standards
- Components, assembly and packaging are ISO 5359 compliant
Product Overview

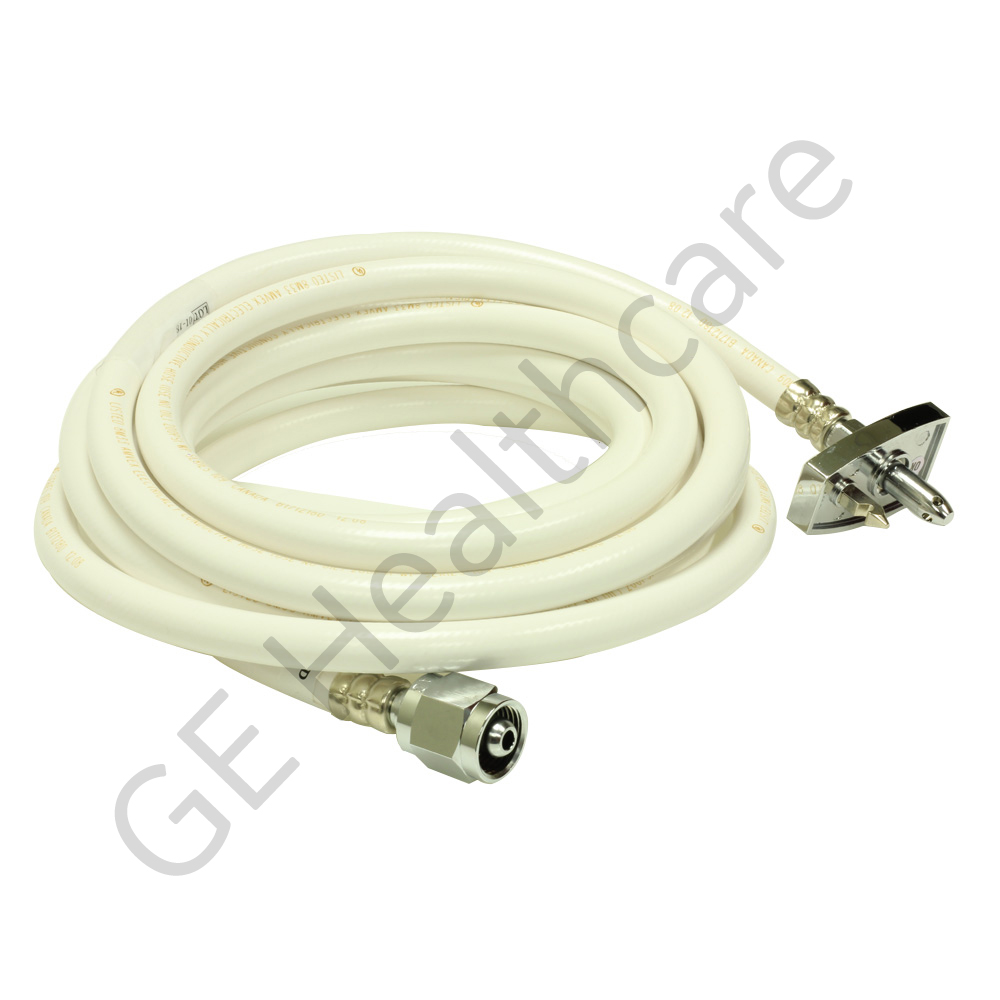

The Hose/Assembly VAC White 15ft NCG M/DISS N-G BCG is a hose assembly that comes as a part of the Diameter Index Safety System (DISS) module of the Breathing Gas Circuit (BGC) in an anesthesia delivery machine. DISS provides gases required for the patient from an external outlet. Hoses are provided at the wall outlet of DISS, specific to each gas and are color coded such that they can be distinguished easily. The assembly consists of a hex nut fitting and a male fitting on either end of the conductive hose. It is made of Poly Vinyl Chloride (PVC) without Di (2-ethylhexyl) phthalate (DEHP) as the plasticizer, thus avoiding the side effects of DEHP on the patients and the environment. It comes into contact with gases that are less than 300 psi and are administered to the patient and despite this, it provides efficient performance by resisting corrosion and being used in varying medical environments. It comes as a part of the medical equipment such as Aespire View.
Substitute Parts (price may vary):
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
Equivalent part | Part Details |
---|---|
0231-1518-812 | Hose/AssemblyV AC White 15ft NCG M/Diameter Index Safety |
