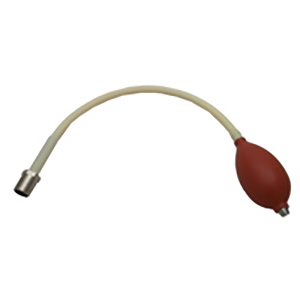

Squeeze Bulb Assembly, Low Pressure Leak Tester
| 0309-1319-800 | |
| 0309-1318-800 | |
| Anesthesia Delivery | |
| Aespire | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Brass with nickel plated connector
- Autoclavable tube
- Polypropylene based Thermoplastic Rubber (TPR) tube
- RoHS compliant
Product Overview
Small leaks in the Low Pressure System (LPS) of the anesthesia gas machine can cause hypoxia or patient awareness. Hence to determine the relative sensitivities, testing is done for detecting low pressure leaks and vacuum. Low pressure leak tester ensures the testing in an efficient and easy way. This assembly has a brass with nickel plated connector. This connector is corrosion resistance, tough and has better strength at high and low temperatures, with the range of special magnetic and electronic properties. To test for leakage: 1. Connect the bulb assembly to vacuum gauge. Squeeze bulb 2-3 times and release bulb. 2. A vacuum of 50 mmHg and 150 mmHg shall persist for at least 2 minutes before bulb is fully expanded to its normal shape. 3. Record the time taken for the bulb to flatten. Time less than 30 seconds, indicates unacceptable leaks. It is used in Anesthesia machines like Aespire 7900, Aisys and Aestiva
Equivalent Item(s) (price may vary):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) (price may vary) | Item Details |
|---|---|
| 0309-1318-800 | DEVICE LOW PRESS TESTING BULB TYPE W/INSTR |
