Printed circuit Board (PCB) Case PCI Acquisition Board Assembly

2002599-001
Diagnostic ECG
Invasive Cardiology
GE HealthCare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Low environmental impact
  • High performance and easy to use
  • Enhanced durability and reliability
  • Clean and free from dirt, dust, tarnish, oil, corrosive products, grease and other contaminants

Product Overview

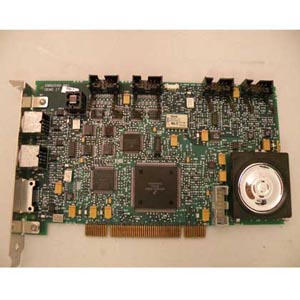

The PCB Case PCI Acquisition Board Assembly in Diagnostic ECG is used in Invasive Cardiology and other medical equipments as applicable. It consists of PCB bracket, speaker, protector current, diodes, connectors, resistors, IC’s and capacitors. This board plugs into a motherboard PCI slot and communicates with the PC motherboard through this PCI slot connection. The CAM 14 acquisition module interfaces to the CASE unit, through this PCB, and this PCB uses an onboard DSP to perform some filtering of patient signal data. This board provides the speaker, CAM 14, RS-232 serial, RS-422 serial, analog I/O, and TTL signal interfaces for the CASE. This board also intercepts the side panel power button signal to trigger an OS shutdown, and when the OS is finished this board sends a control signal to the motherboard to power down the +5/+12V/-12V power supply. A safe and protective packaging is provided to prevent the damage to the cover due to shifting and rubbing during the transit.

Compatible Products

CASE

CASE

Cardio Lab

Cardio Lab

Mac Lab

Mac Lab

BAIE

BAIE
