Assembly VID/MUX for IEB RoHS
| 2003681-004 | |
| 2003681-003 | |
| Diagnostic ECG | |
| Invasive Cardiology | |
| GE Healthcare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

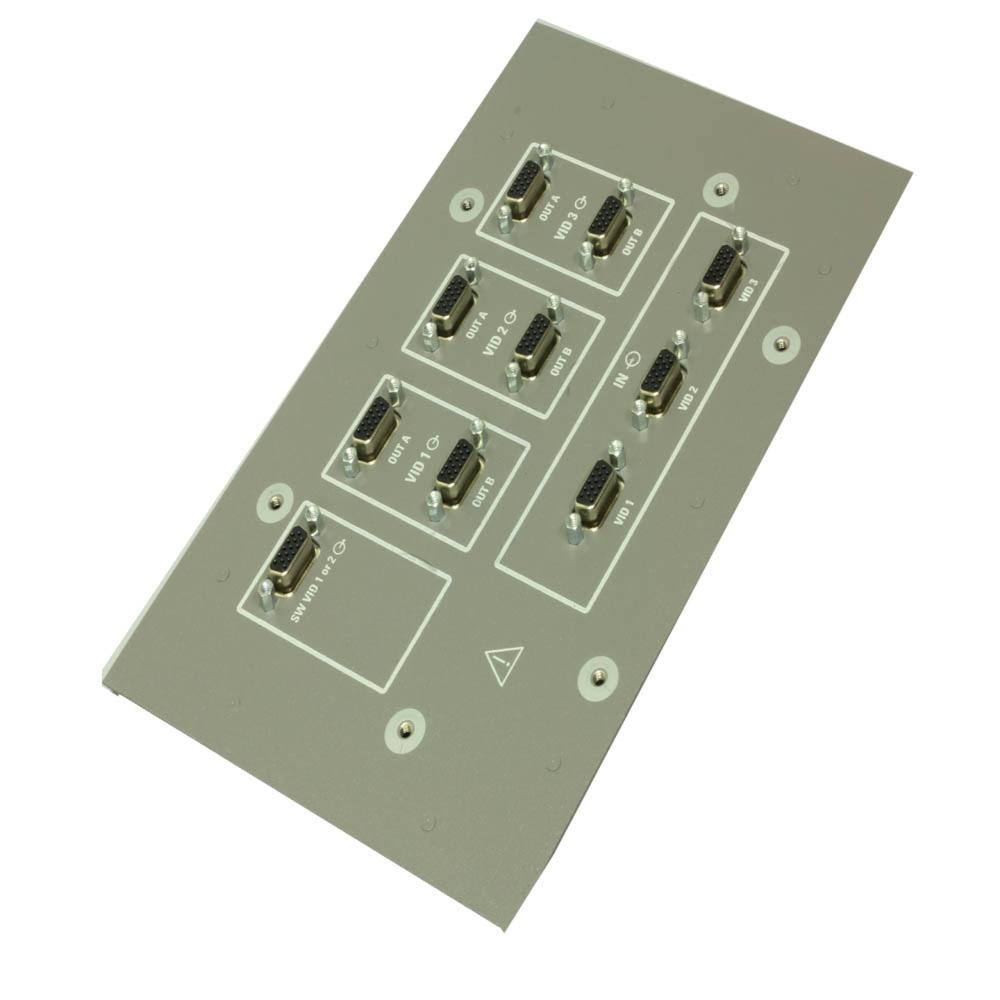

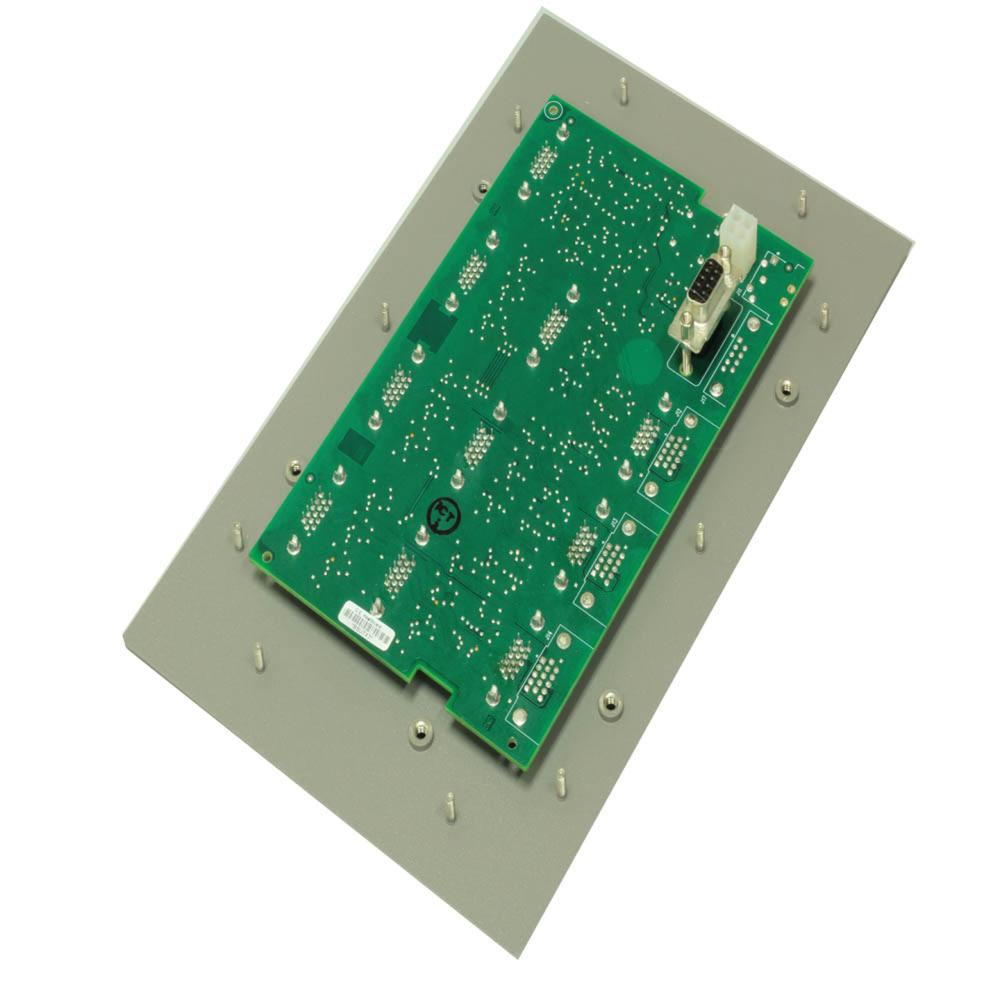

The VID/MUX Assembly consists of Video Multiplexer (VID/MUX) board. It is used in conjunction with the Integrated Electronics Box (IEB) intended to operate in the surgical procedure room. The main purpose of the board is to buffer and switch the three possible video signals for computer monitors. The board has the capability simultaneous signals from three sources: Video 1, Video 2, and Video 3. The VID/MUX box buffers each of these three video signals to two separate outputs, generally called the “remote” and “local” outputs. The local outputs are used for monitors in an actual lab. The final video output on the board is the “Switched Video” output. This output is switched between the signal inputs. The system operates from a power supply with the voltage levels between +5 V and -5 V. The video output drivers on the board are capable of transmitting a video signal through up to 100 feet of shielded video cable. It operates properly under an ambient temperature range from 0˚ C to 35˚ C, non-condensing.
Substitute Parts (price may vary):
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 2003681-003 | The Assembly VID/MUX for IEb is used in Power box, IEB, W/VI |
