Cable Assembly DS1 Sync to UNTERM - 15ft

2017842-001
Patient Monitoring
Patient Monitors
GE HealthCare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Easy to use and connect
  • Longer life
  • Flexible and color coded
  • Chemically inert

Product Overview

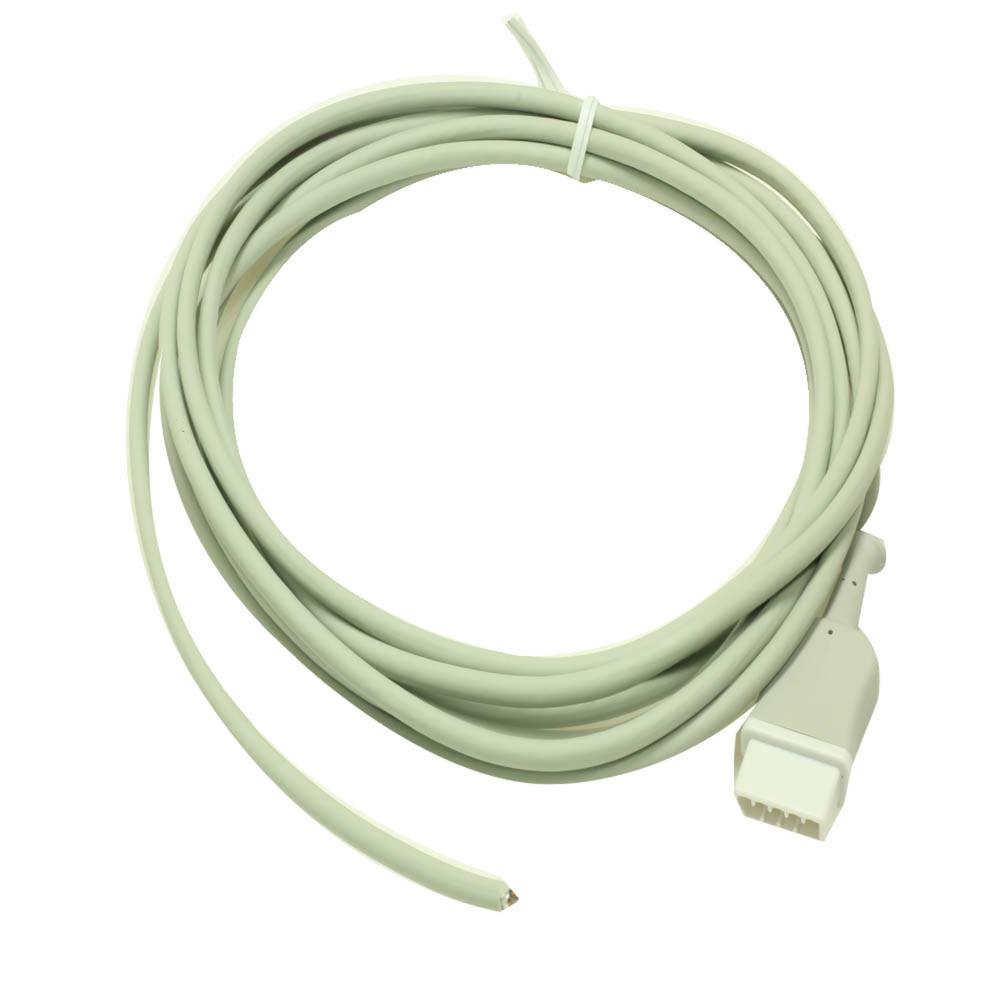

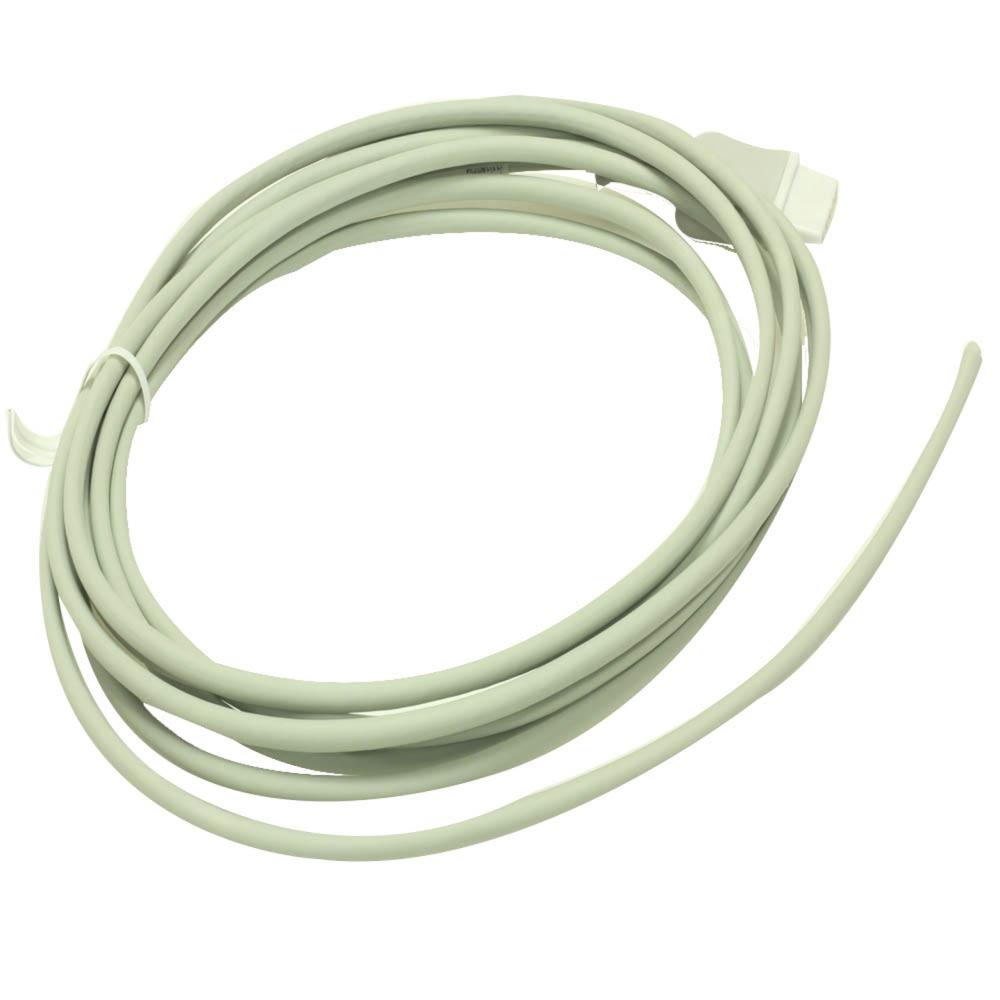

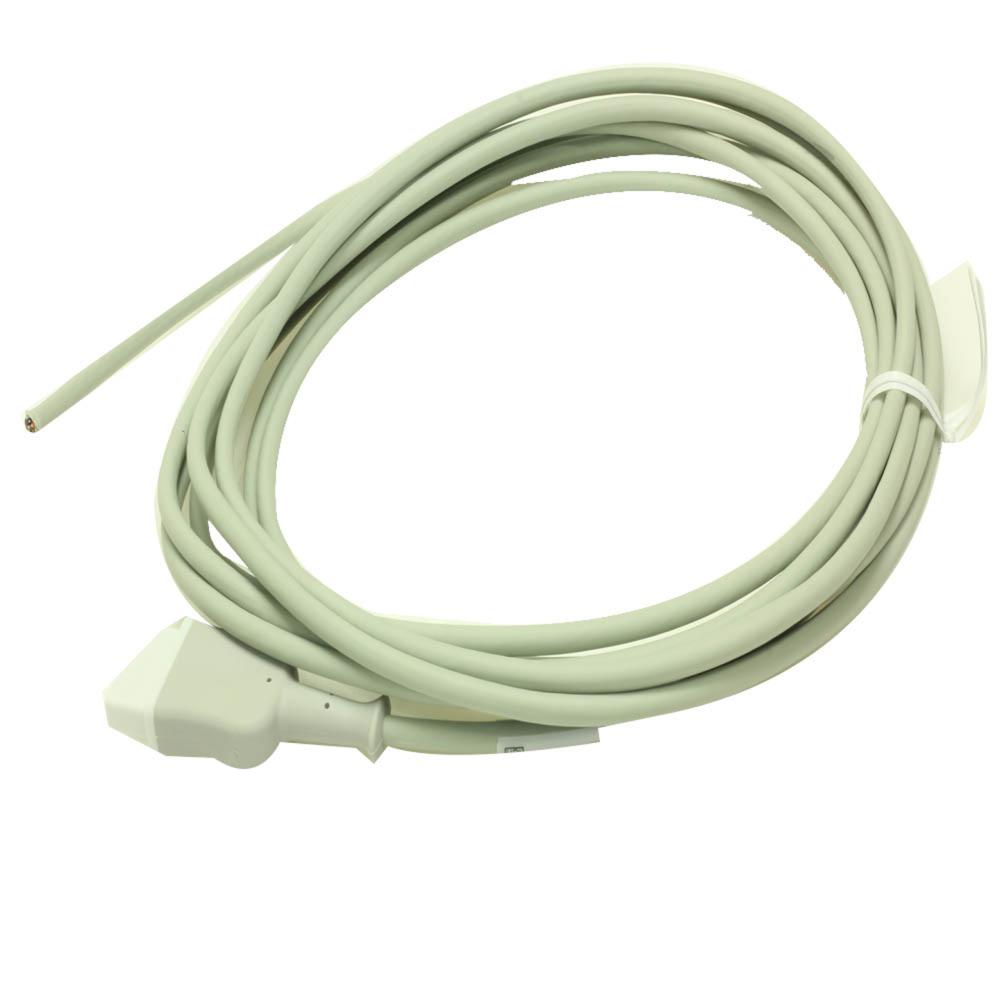

The Cable Assembly DS1 Sync to UNTERM - 15ft is a cable that is a specially designed part used to connect Patient Data Module (PDM) and customer devices. The cable assembly has an unterminated cable at one end and 9-pin DS1-M style connector at the other end. The wire terminations are injection molded with polypropylene and then overmolded with flexible Thermoplastic Elastomer (TPE) to provide for cable strain relief. The purpose of this cable is to provide an ECG & BP synchronization interface from the Patient Data Module (PDM) to third party devices using a proprietary termination as configured by customer. This cable provides two analog output signals (ECG and Arterial Pressure) from the Patient Data Module (PDM) to the corresponding Non-GE equipment. The unterminated end of the cable is configured by the customer using a plug termination that permits signal interface with a third party device. The overmold material Santoprene™ TPV 8281-65MED has excellent chemical resistance, which makes it well suited for many medical applications. The cable assembly offers outstanding flexibility for easier handling.

Compatible Products

CARESCAPE PDM

CARESCAPE PDM
