Harness For Kontron Softstart Button with Internal Cable

2053583-001
Diagnostic ECG
Other Diagnostic ECG
GE Healthcare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Cable Harness With Pushbutton Switch
  • Good Conductivity
  • Easy To Connect Connectors At Both Ends
  • Reliable Operation

Product Overview

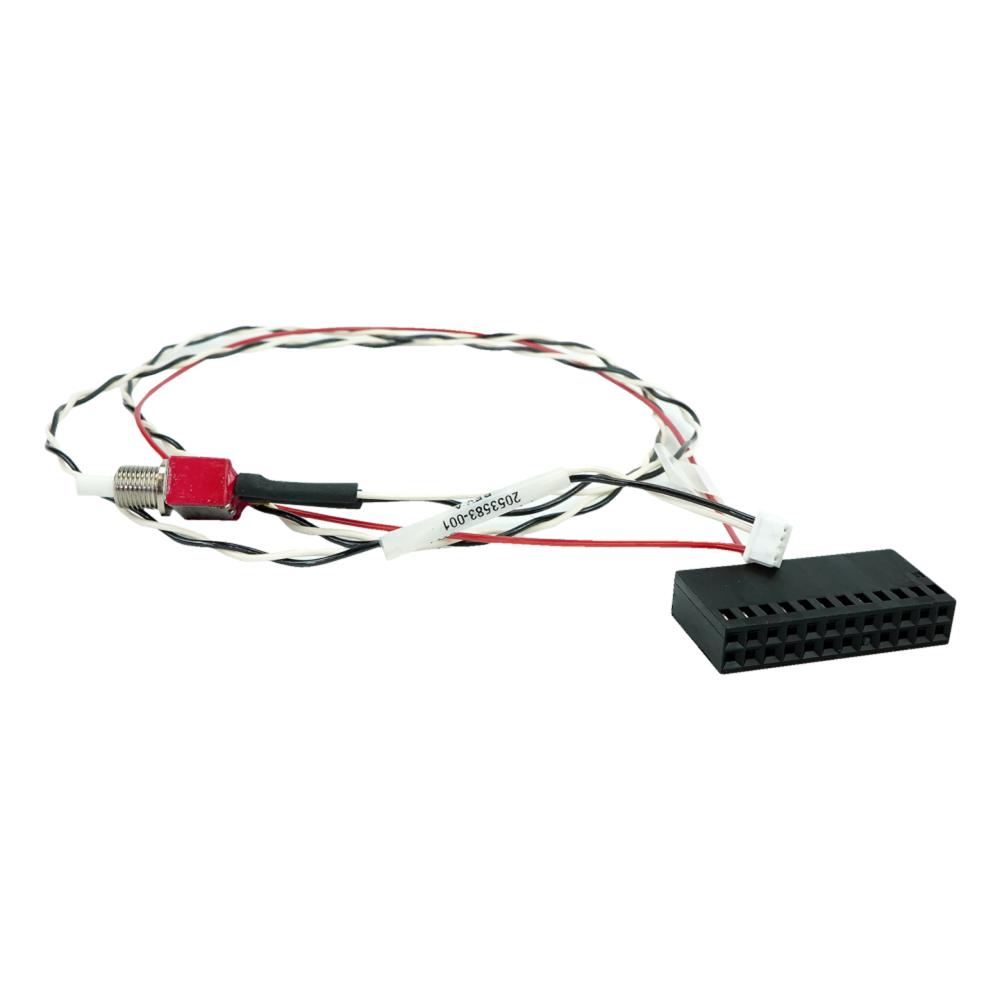

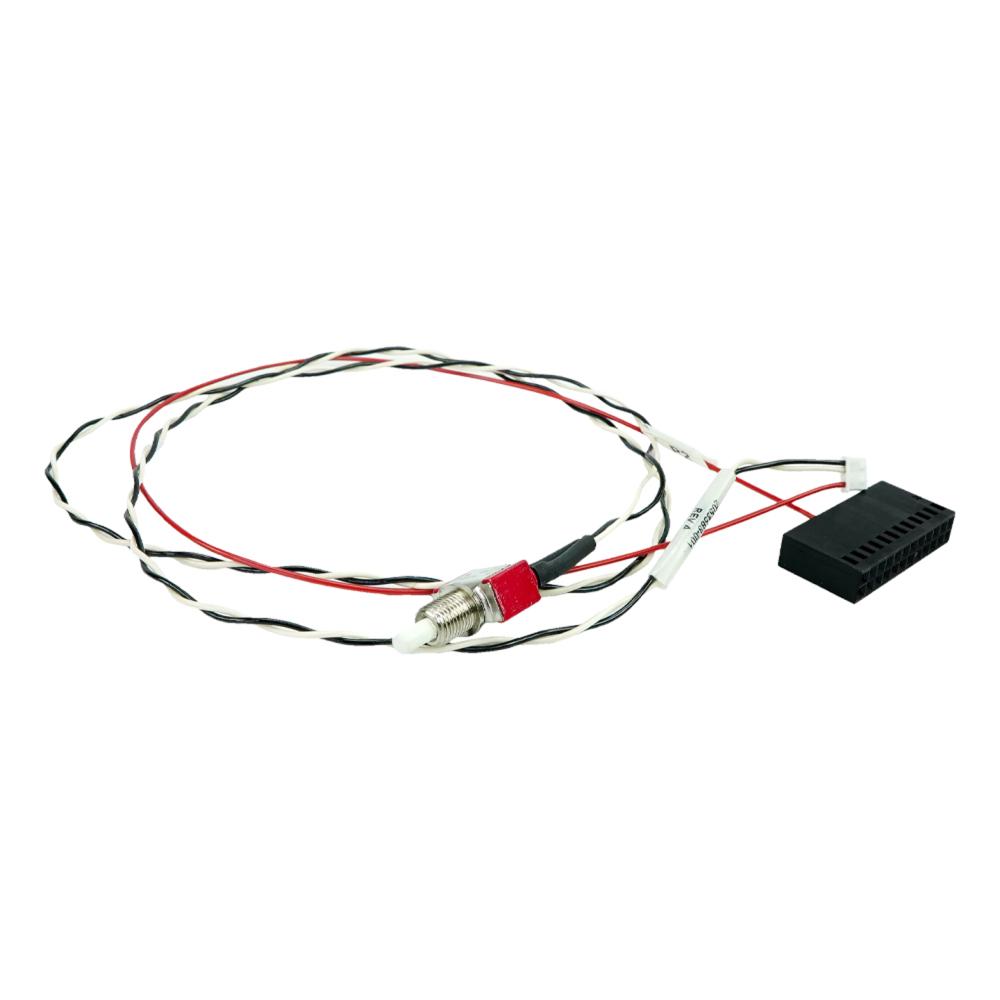

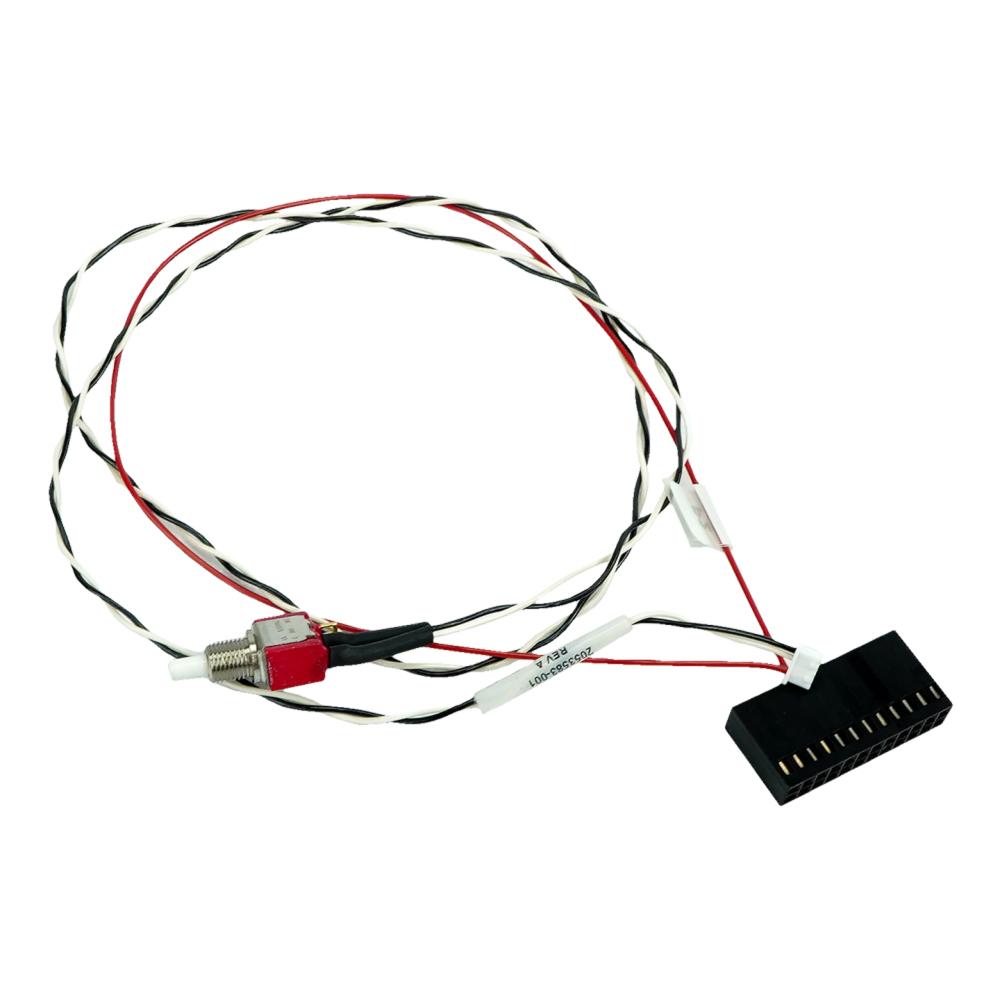

This Cable Harness with softstart button is used to trigger On/Off function of the computer motherboard which is used in the GE's CASE Diagnostic ECG systems. The cable harness comprises of a 4 position-1 row female connector (P1) at one end which is connected to a pushbutton switch using a 711 mm long 26 AWG, stranded, black and white twisted pair cable. A 24 position-2 row female connector (P2) is also connected with P1 using a 350 mm long 26 AWG, stranded red wire. The pushbutton switch used with this harness is madeup of stainless steel with gold plated contacts which offers heat protection and offers 60000 cycles life with enhance durability. The P1 and P2 connectors are connected using cable having different length which prevents tangling during routing.

Compatible Products

CASE

CASE
