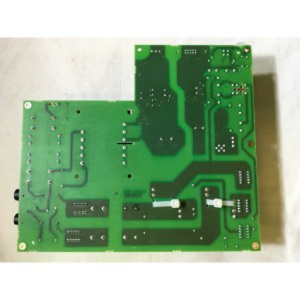

Printed Circuit Board - Treadmill Power 3rd Edition - RoHS

2083695-002
2022341-001
Diagnostic ECG
Stress
GE HealthCare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Hazardous materials are not used
  • Flame retardant
  • Meets international standards for safety requirements
  • Electromagnetic Interference (EMI) protected

Product Overview

The Printed Circuit Board - Treadmill Power 3rd Edition is used in the treadmill, which is part of the Diagnostic ECG system. It is a specially designed circuit board intended for use in T series treadmills to control power. The newly designed PCB is an upgrade for the T series treadmills. It rectifies the errors caused in the T series treadmill and keep them up and running quite efficiently. This board is comprised of components including the PCB, resistor, capacitor, IC's, fuse, power transformer, thermistor, diodes, inductor, EMI-filter, transistor, relay, connector, and header. The circuit board is made of FR-4 with PCL-FR-370HR laminated, which is a composite material that consists of glass fabric, electrical grade epoxy resin. It is a flame retardant material. The material is extremely strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. FR-4 is widely used as an insulator for electrical and electronic applications.

Compatible Products

Treadmill T 2100

Treadmill T 2100

Substitute Parts (price may vary):

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2022341-001 PCB TREADMILL POWER
