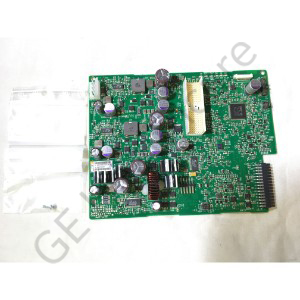

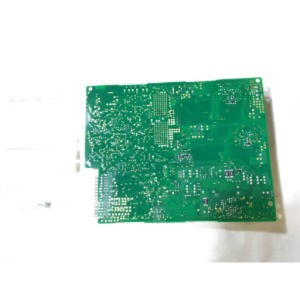

FRU, DC/DC BOARD, FOR SNE B450
| 2089460-001 | |
| Patient Monitoring | |
| Patient Monitors | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Field Replaceable Unit (FRU) can be easily removed and replaced
- Manages the power path logic
- Built-in temperature sensors
- Voltages from both AC power supply and batteries are measured and converted
Product Overview
The patient monitor displays different parameters of the patient. It can be supported by mains voltage with an integrated AC/DC power supply unit or is battery powered. The AC/DC power supply unit consists of an AC/DC input cable provides continuous output power for the DC/DC board and monitor supports two rechargeable and exchangeable batteries which communicate with the DC/DC board. The DC/DC board converts the varying output voltage of the AC/DC power supply or the battery voltage to required supply voltage for the electronics of the device. It controls the power path switches and manages battery. It generates +12V that can be supplied to the CPU module, thermal recorder and the LED backlight converter unit in the LCD display and +15V that can be supplied to the E-modules and PSM module through +15VMOD circuit breaker. It consists of temperature sensors which measure the internal temperature of the patient monitor. It also measures system power which means total power consumption of the patient monitor.
