Power tube 4CW25000A

2103230
PET Radiopharmacy
PETtrace 800
GE Healthcare
2103230
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • High Power Tetrode Tube
  • Vertical Axis Mounting
  • Good Operating Frequency
  • High Radio Frequency (RF) Efficiency

Product Overview

Part Title: Power tube 4CW25000A
Sub-System: Tube Amplifier
Part Type: Special Part
Part Compatibility: PETtrace 800 ,

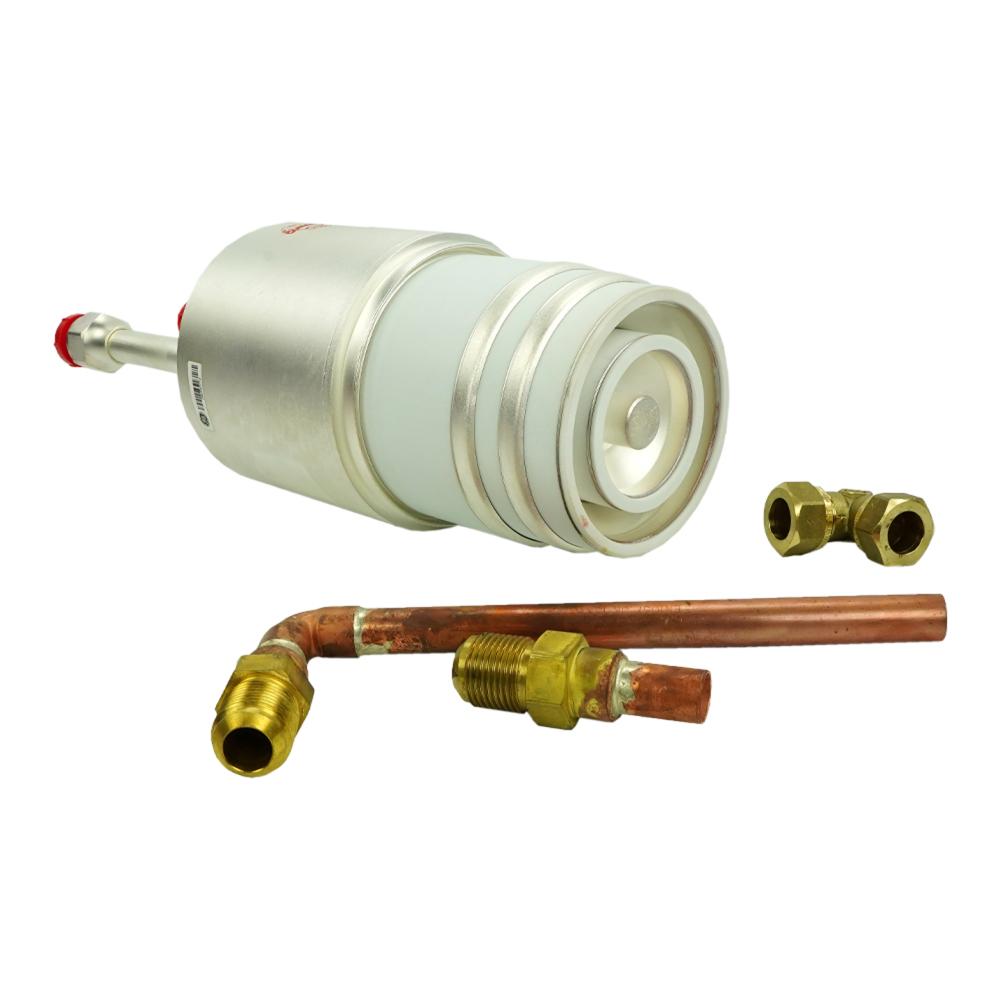

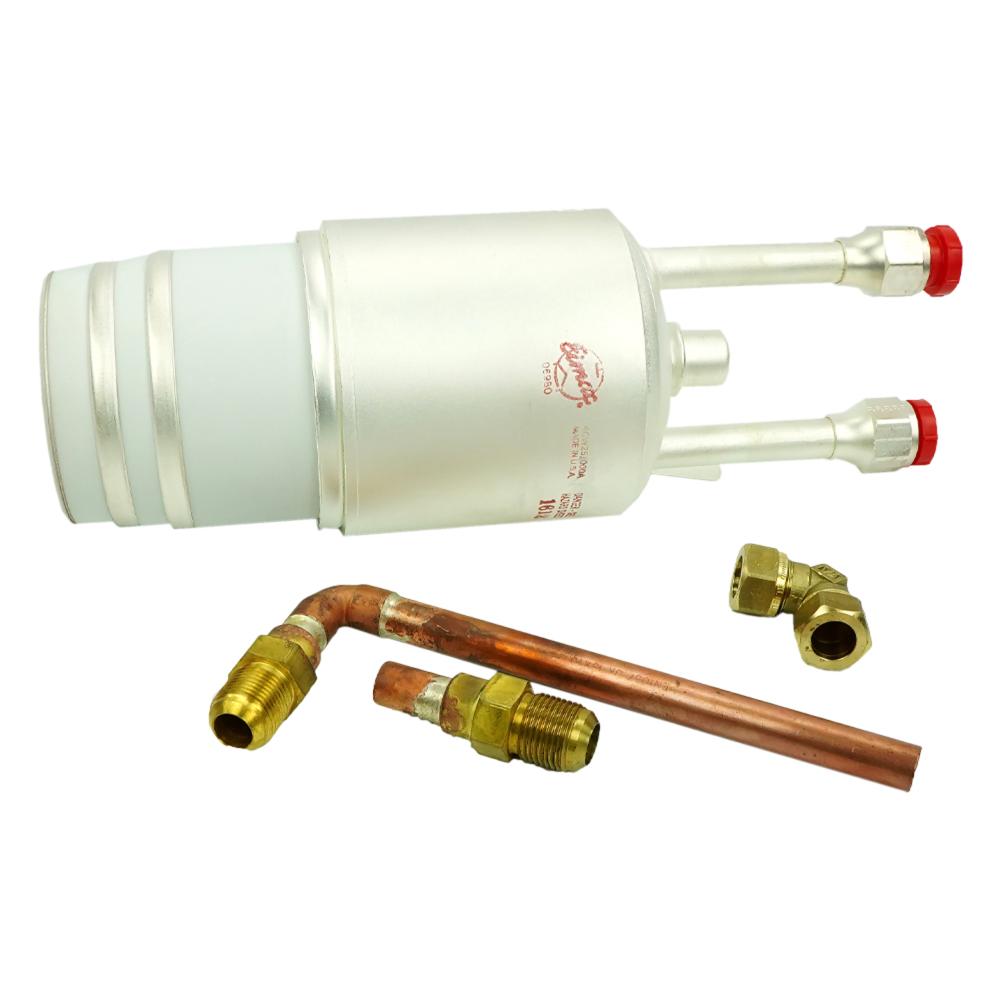

This water cooled Tetrode tube is intended for use in audio and radio frequencies applications and features an internal mechanical structure which results in high Radio Frequency (RF) operating efficiency, and low RF losses which permits operation at full ratings to 110 MHz and at reduced ratings to 225 MHz. The tubes are also recommended for RF linear power amplifier service and for Very high Frequency (VHF) applications. This tube contains a Thoriated Tungsten filament and thermal management is done using water circulation through provided tubings. The assembly comes with a copper water connection tube with a 90 degree Angled elbow, Ferrule nut, Male tube connector and another piece of 90 Degree Elbow. This Power Tetrode Tube is used in the Cyclotron assembly of PET Radiopharmacy systems.
