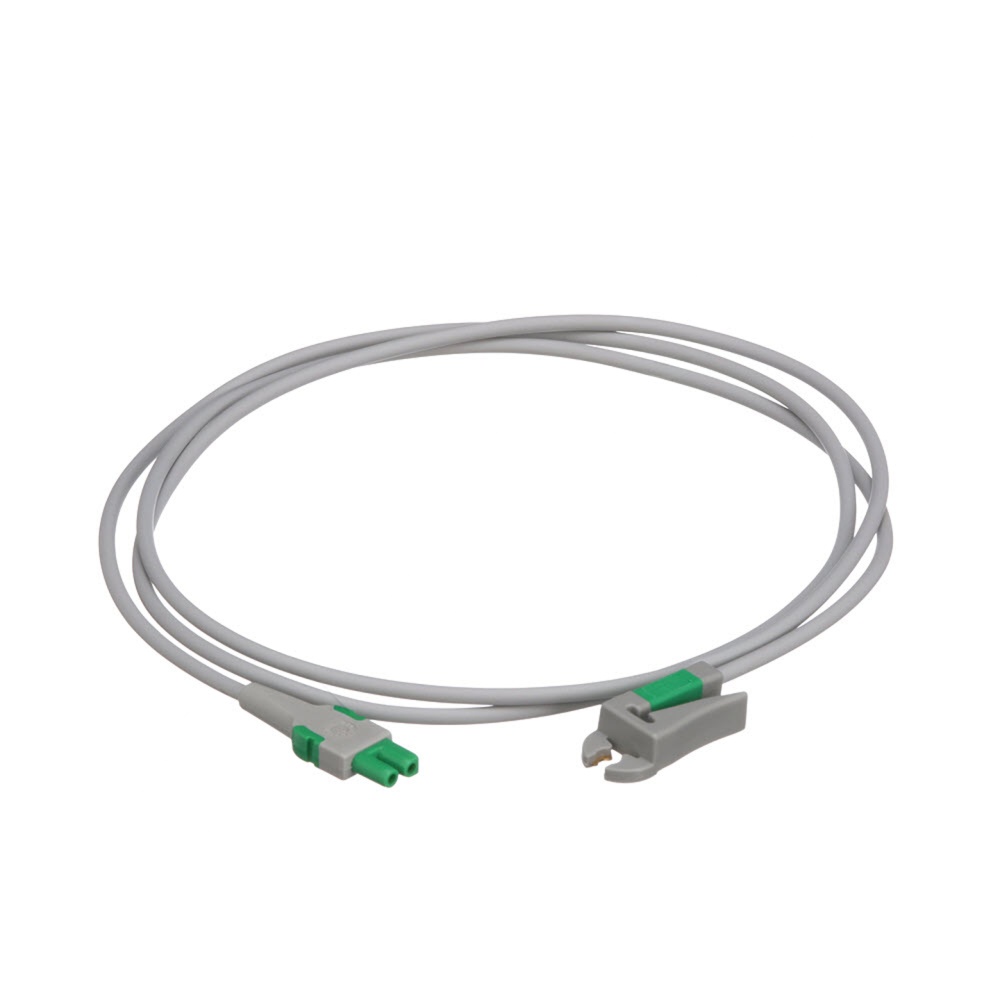

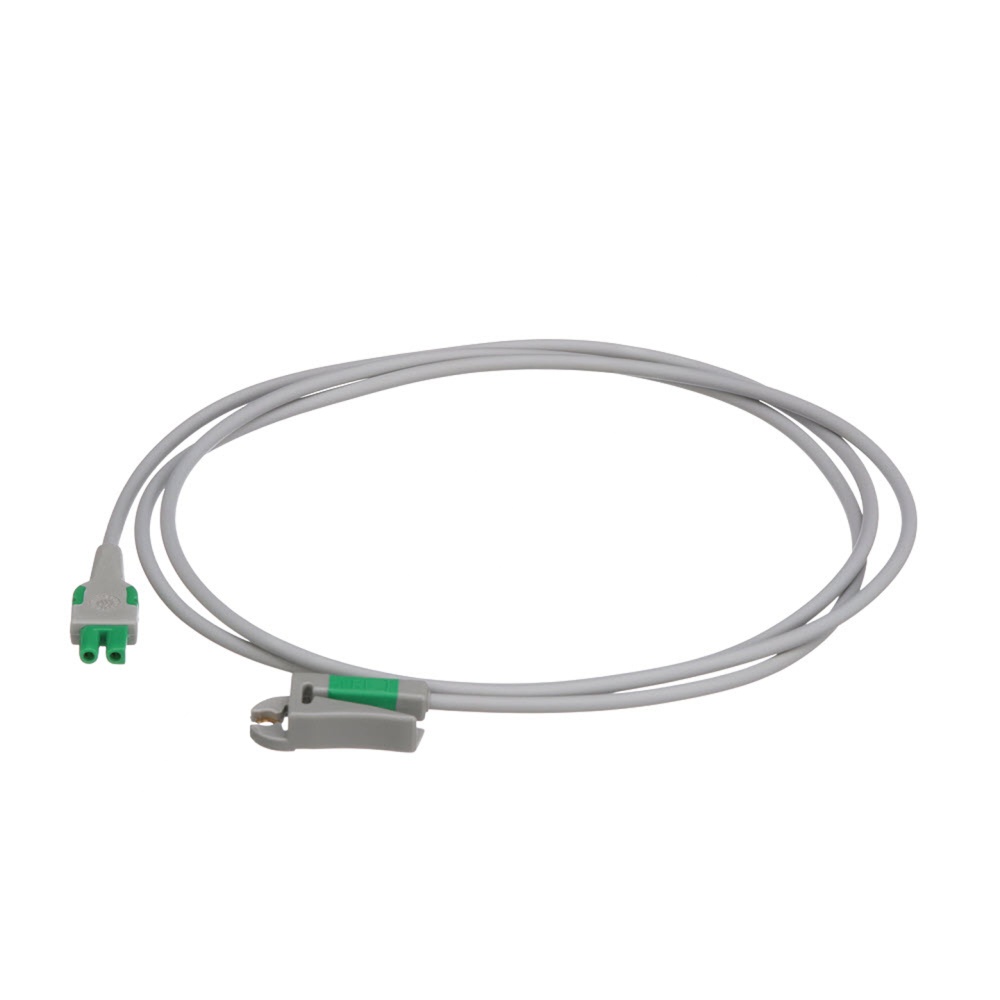

ECG Green Lead Wire for Europe

Vivid T8

In the Vivid™ T8, we’ve taken the established cardiac imaging capabilities of GE Vivid systems, and blended them with exceptional shared services performance of the LOGIQ™ systems.

The result: some of the best features of both systems combined into one value hybrid cardiovascular ultrasound system – rugged, reliable, robust, and rich with features, yet still affordable and easy to use. The Vivid T8 is designed to be easy to operate and transport in many environments. Its intuitive user interface is a true Vivid console, with Vivid applications, features, workflow, and reliability, simplified for ease of use.

LOGIQ F8

An ultrasound machine is an important piece of equipment for a urologist. And even more important for the patients. The high-quality LOGIQ F8 can help to deliver quality patient care.

The LOGIQ F8 has many features and advancements that urologists are looking for in a new ultrasound system, including:

Image quality - Visualize superficial and deep anatomy with excellent penetration. Advanced features like Speckle Reduction Imaging (SRI) help enhance resolution for image clarity
Productivity - Auto-Optimization to quickly adjust image quality with the touch of a button
Patient comfort - Smaller endocavitary E8Cs-RS probe offers wider field of view
Simplified connectivity - Wired and wireless options streamline archiving and communication
Onboard reporting - Store reports with exam details and images as a PDF for the EMR
Urology-specific applications - new BE9CS-RS bi-plane probe is designed for prostate imaging; B-flow™ hemodynamic imaging helps detect small and difficult to visualize vessels

Vivid 7

The Vivid 7/Vivid 7 PRO ultrasound unit is a high performance digital ultrasound imaging system.The system provides image generation in 2D (B) Mode, Color Doppler, Power Doppler (Angio), M-Mode, Color M-Mode, PW and CW Doppler spectra, Tissue Velocity imaging and Contrast applications. The fully digital architecture of the Vivid 7/Vivid 7 PRO unit allows optimal usage of all scanning modes and probe types,throughout the full spectrum of operating frequencies.The Vivid 7 Dimension gives clinicians a better way to convey their findings to other cardiologists, referring physicians,EP physicians and patients. Now, cardiac anatomy,synchronicity and viability can be clearly communicated in imaging formats that are more familiar for your clinical partners, thus easier to understand.

• Real-time 4D imaging – provides more cardiac information to help clinicians better communicate the heart’s structure and function.
• 4D Tissue Synchronization Imaging (TSI) – propels Tissue Velocity Imaging (TVI) to the next level by taking three simultaneous planes – from a single heartbeat at high frame rates – to create a flexible, dynamic 4D model with quantitative measurements to better communicate cardiac dyssynchrony.
• Bull’s-eye report formats and TSI surface mapping –communicate cardiac dyssynchrony in a visual display that should be more familiar to EP physicians.
• Blood Flow Imaging (BFI) – new vascular imaging mode gives clinicians a better understanding and delineation of directional blood flow in vessels.
• Seamless measurement integration – allows you to efficiently calculate ejection fraction and volumes from tri-plane images gathered from the same heartbeat.

LOGIQ E9

The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.

The LOGIQ E9 can help you:

Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.

LOGIQ P5

The LOGIQ* P5 portable ultrasound system puts quality ultrasound technology well within the reach of your private practice, specialized clinic, or hospital. It offers solid image quality, including enhanced 4D capabilities and an extensive portfolio of transducers to help you take your patient care to a high level.

Advanced features help you capture exceptional images:

High Definition Speckle Reduction Imaging (SRI-HD) helps eliminate noise while maintaining true tissue architecture
CrossXBeam* Imaging helps enhance tissue and border differentiation
Auto Optimization (AO) increases contrast resolution
Auto TGC helps provide a homogenous brightness to the image to enhance clarity
Phase Inversion Harmonics helps provide higher spatial resolution and deeper penetration
3D/4D imaging helps reveal anatomical details
Elastography for breast and musculoskeletal exams
Auto IMT (Automated Intima Media Thickness) for quick carotid artery analysis
TVI, Myocardial Doppler imaging with color overlay
Stress Echo

LOGIQ P5 includes many established applications from GE's high-end ultrasound systems, including:
A broad portfolio of broadband transducers
Enhanced 4D capabilities
Intuitive image management tools

Vivid 5

Our Vivid* S5 cardiovascular ultrasound systems combine miniaturization and versatile diagnostic solutions with exceptional performance and excellent image quality. Advanced functions, an innovative ergonomic design, and broad shared-service capabilities—including vascular, abdominal, pediatric/fetal, and OB—allow you to keep the focus on your patients.

Easy-to-use Stress Echo package.
The mobile Vivid S5 cardiovascular ultrasound system offers a complete, easy-to-use package for stress echo. With its innovative features, the Vivid S5 facilitates rapid interpretations and helps streamline stress echo exams.With excellent image quality, sensitivity, high frame rates, and speed, the Vivid S5 delivers the enhanced diagnostic performance you need—in an affordable, ergonomically designed system that can significantly improve your stress echo workflow.

Shared service packages can help improve productivity.
The fully integrated cardiac, vascular, and OB/GYN measurement and report packages available on the Vivid S5 support productivity, and reduce the time spent documenting after your patient has left.The vascular package offers automated optimization tools and vascular calculations that can improve the efficiency of all types of vascular exams.

Streamline procedures and help improve productivity.
The Vivid S5 cardiovascular ultrasound system features an innovative design that helps improve productivity. With a high-performance, compact design—where miniaturization meets console—and ergonomic comfort, this system can bring your workflow and productivity to the next level. Automated image-optimization features and a wide range of connectivity options allow fast acquisitions, to streamline procedures and provide a high standard of productivity in your busy lab.

Vivid 3

The GE Vivid 3 ultrasound machine is one of the most versatile systems on the market today and can be used for almost any application.

Voluson 730 Pro

The Voluson® 730Pro is a professional Diagnostic Ultrasound System which transmits Ultrasound waves into the body tissues and forms images from the information contained within the received echoes. The Voluson® 730Pro is an Active Diagnostic Medical Product belonging to Class IIa according to the MDD 93/42/EWG regulation for use on human patients.

The Voluson® 730Pro scanner system has been designed for utmost safety for patient and user. Read the following chapters thoroughly before you start working with the machine. The manufacturer guarantees safety and reliability of the system only when all the following cautions and warnings are observed.
