Integrated Head Assembly 2296092-2

2296092-2
Magnetic Resonance Imaging
Signa Excite 1.5T
GE HealthCare
2296092-2
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Easily portable
  • Lightweight
  • Accurate and sensitive
  • Increased life span

Product Overview

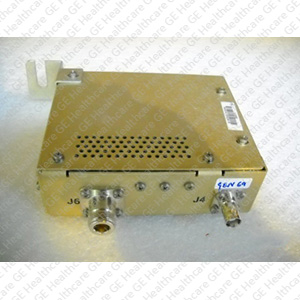

The Integrated Head Assembly is located inside the LPCA (Low Profile Carriage Assembly) with the 20 pin quick disconnect towards the front. This assembly consists of 1.5T Head TR Preamp Filter Board mounted on mechanical enclosure. The Integrated Head Assembly has a single receiver channel and Transmit and Receive Switch for Head or Tx/ Rx Coils. The Head T/R Switch provides an RF switch between the Head Coil to the RF Amplifier and the Head Coil to Preamplifier. During signal transmission, the receiving port gets terminated to the 50 ohm receiving load, and vice-versa during signal reception. The assembly has all required connectors (a 20 connector, a DB9 connector, a BNC socket and a N type socket) for easy connections. The assembly uses high quality components meeting the applicable standards for reliable operation. This assembly can be used with Signa Excite 1.5T systems.

Compatible Products

Signa Excite 1.5T

Signa Excite 1.5T
