Total Lock Caster for Signa MRI
| 2330261 | |
| 46-282919P1 | |
| Magnetic Resonance Imaging | |
| Brivo 355 | |
| GE HealthCare | |
| 2330261 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Reliable and durable
- Does not contain any internal sharp edges, scratches or notches
- Smooth wheel movement
- Strong and hard and can bear a wide range of load
Product Overview

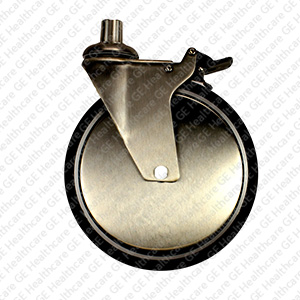

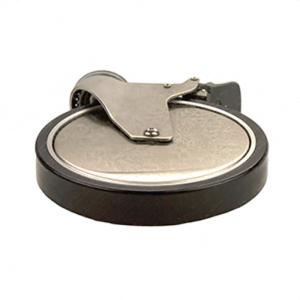

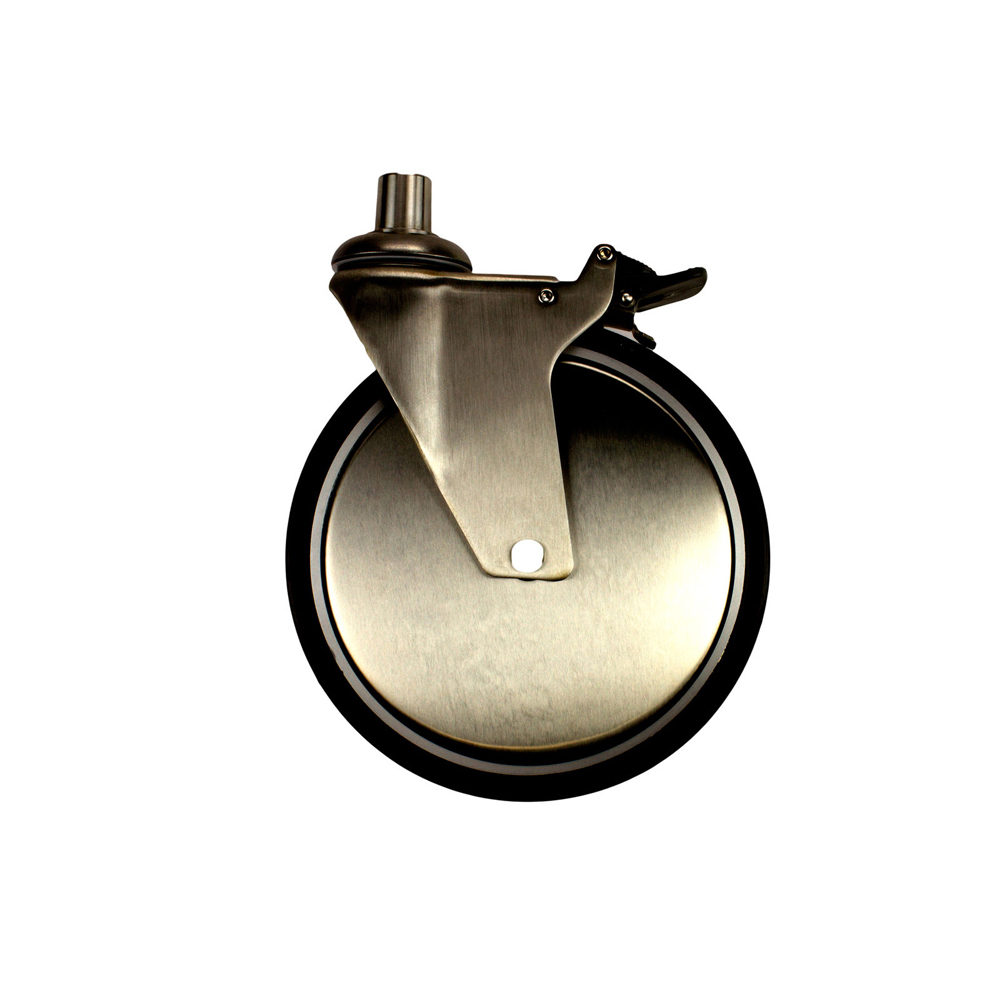

The Total Lock Caster is a part of Signa Magnetic Resonance Imaging (MRI) system. It has 2 front and 2 rear casters (wheels). The total lock brake simultaneously locks the wheel and the swivel. As a single step procedure, activates the pedal instantly locks the entire caster holding the equipment firmly in place. Similarly, a simple step on release pedal frees the swivel and wheel. This feature assures that the swivel caster will not turn when the wheel is locked, thus making it an effective locking mechanism for MRI environments. It has a capacity of bearing peak load up to 150 kg each. All the materials used are to be non-magnetic, however maximum of 0.2 lbs of magnetic material on each caster is permissible. The wheel covers and the castor fork have a matt finish. The tier of the caster wheels is made up of a rubber which has excellent mechanical properties including good tensile, elongation, tear resistance and resilience. The force needed to lock or release the brake should not exceed 12kgf.
Substitute Parts (price may vary):
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 46-282919P1 | CASTER W/FOOT OPERABLE WHEEL BRAKE TOTAL LOCK CASTER |
