60 W, 24 VDC Output AC-DC Power Supply With Enclosure 2338482

2338482
Interventional Image Guided Systems
Other Interventional Image Guided Systems
GE HealthCare
2338482
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Accepts universal input 85-264 VAC
  • Remote sense on output
  • Built-in EMI filter
  • Low output ripple

Product Overview

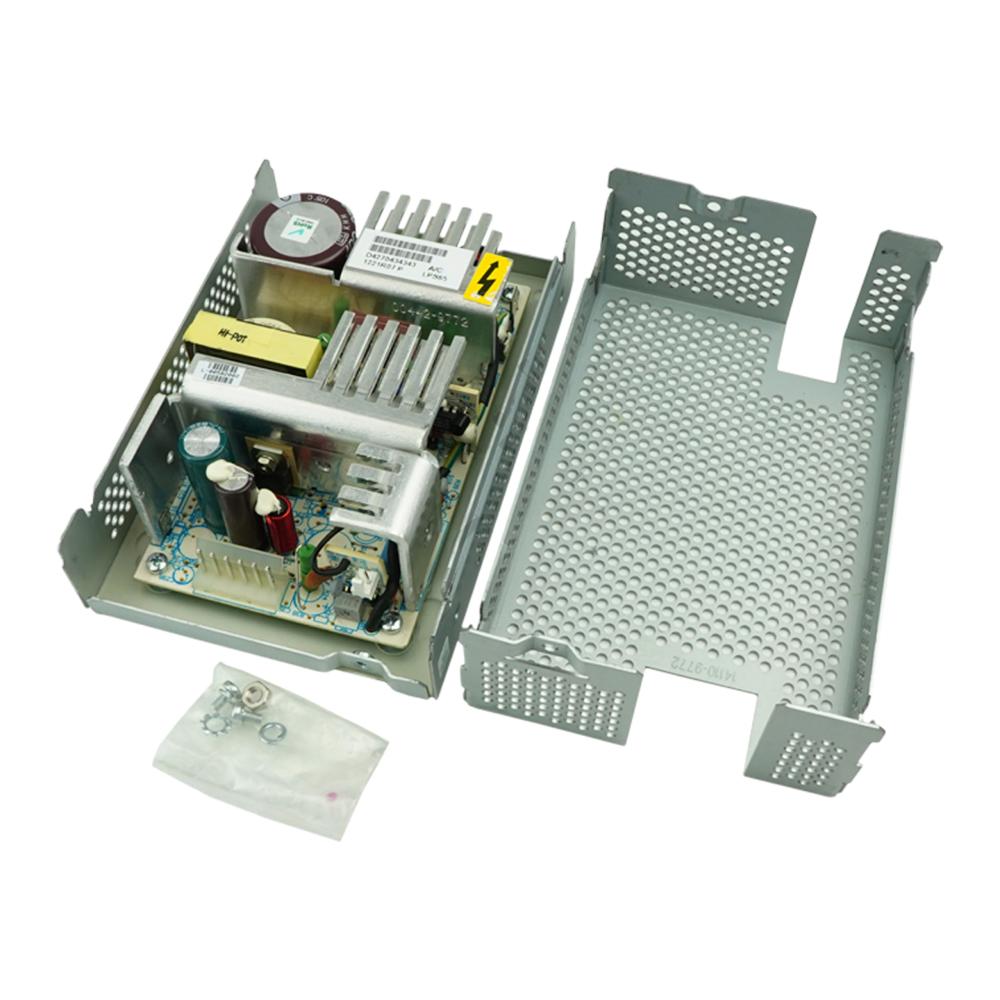

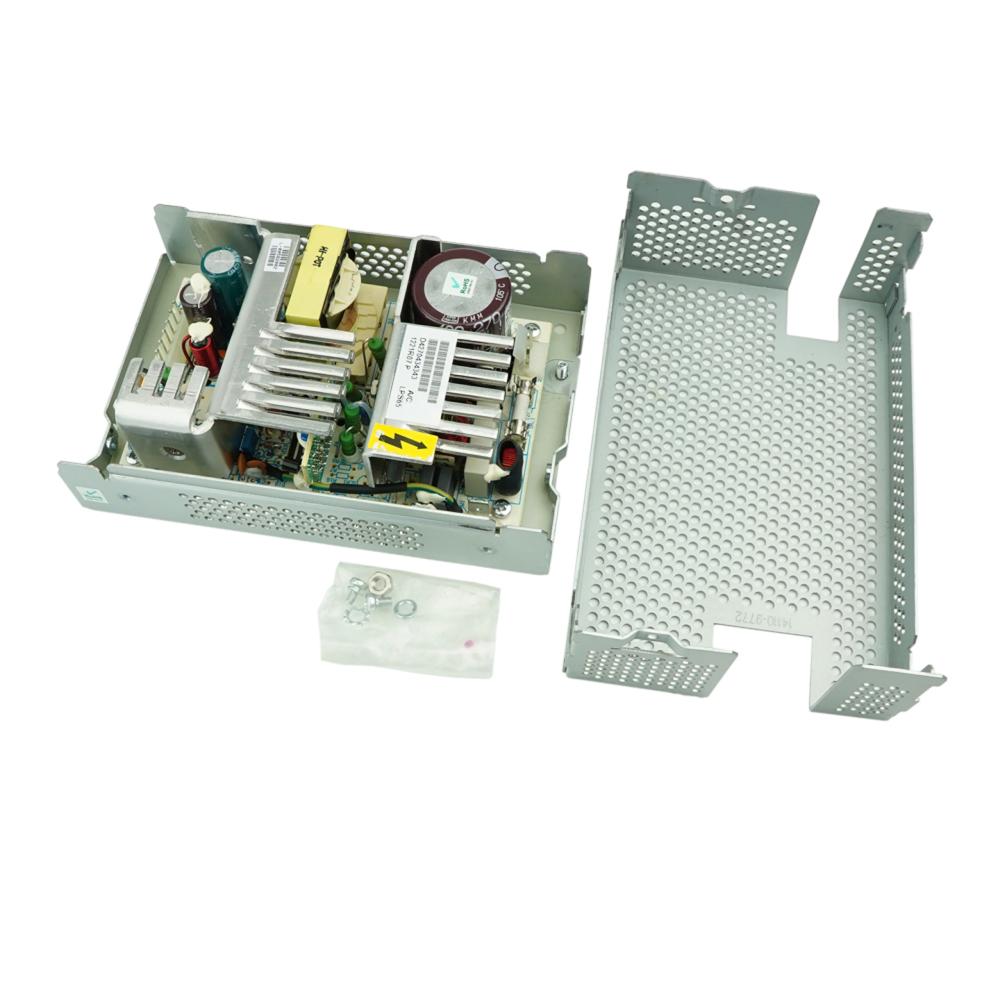

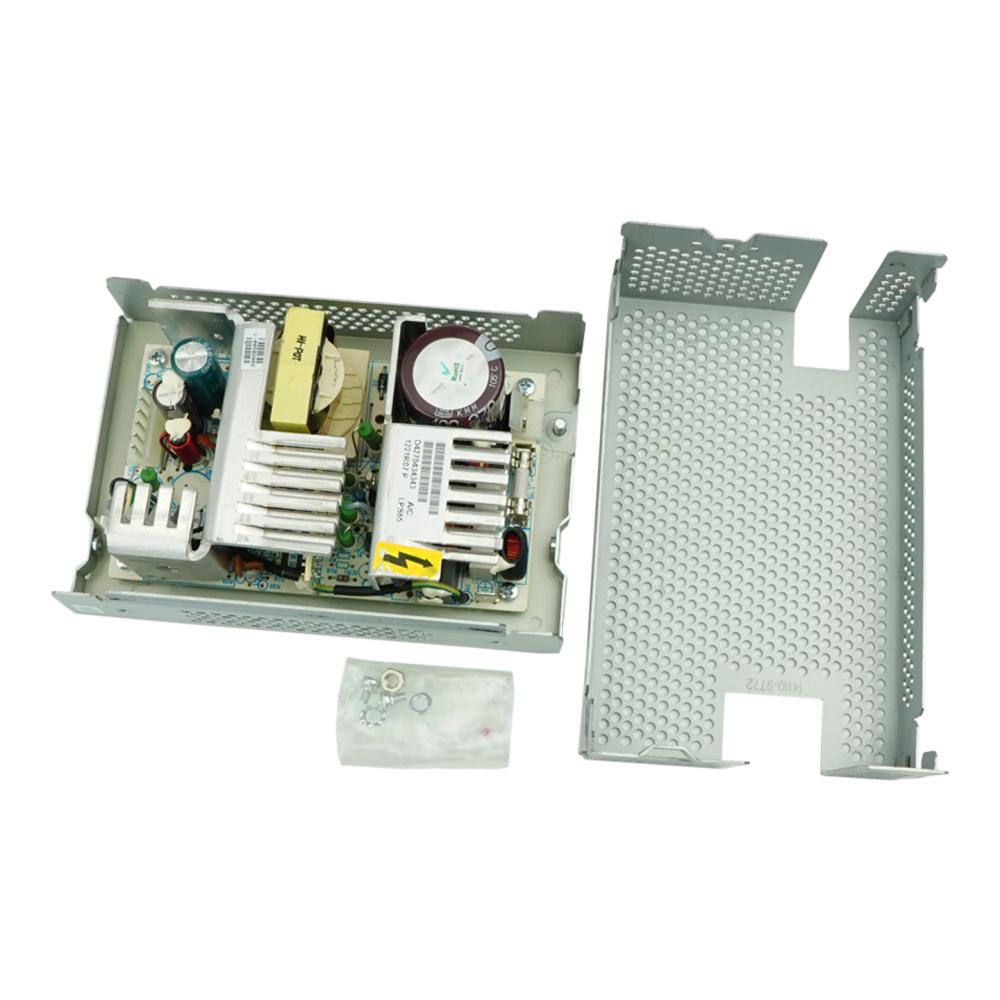

This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. The power supply is a 60 W continuous output power supply with +24 VDC output. The power supply accepts universal input of 85-264 VAC or 120-300 VDC. This compact switch-mode power supplies feature main output overvoltage protection and remote sense, with short-circuit protection. It provides 60 watts of output power with free air convection cooling, and 80 watts with 30 CFM of forced air. The power supply module is enclosed in a metallic enclosure to protect the circuit inside. This power supply assembly is compatible to be used with GE's Discovery IGS (520, 530 and 540), Discovery IGS 730 and Innova 2000 Interventional Image Guided Systems.

Compatible Products

Discovery IGS 530

Discovery IGS 530

Discovery IGS 520

Discovery IGS 520

Discovery IGS 540

Discovery IGS 540

Discovery IGS 730

Discovery IGS 730

Innova 2000

Innova 2000
