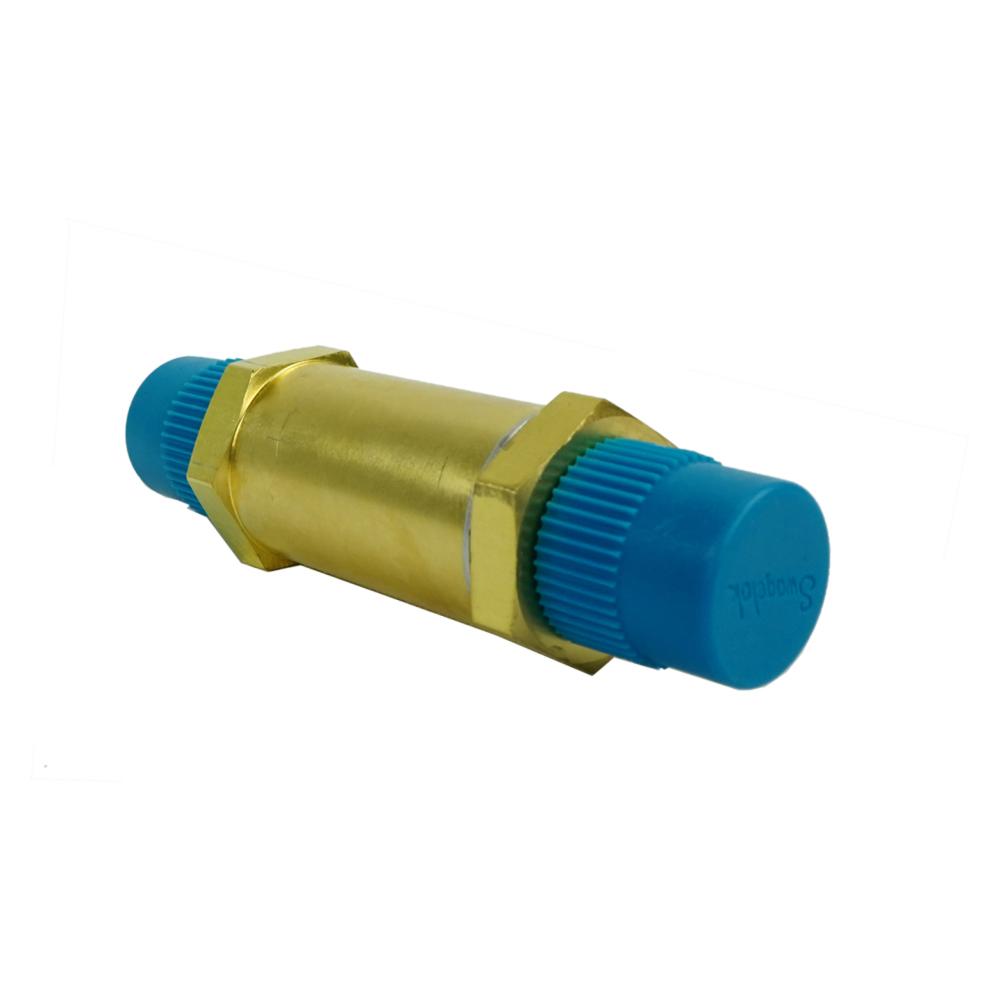

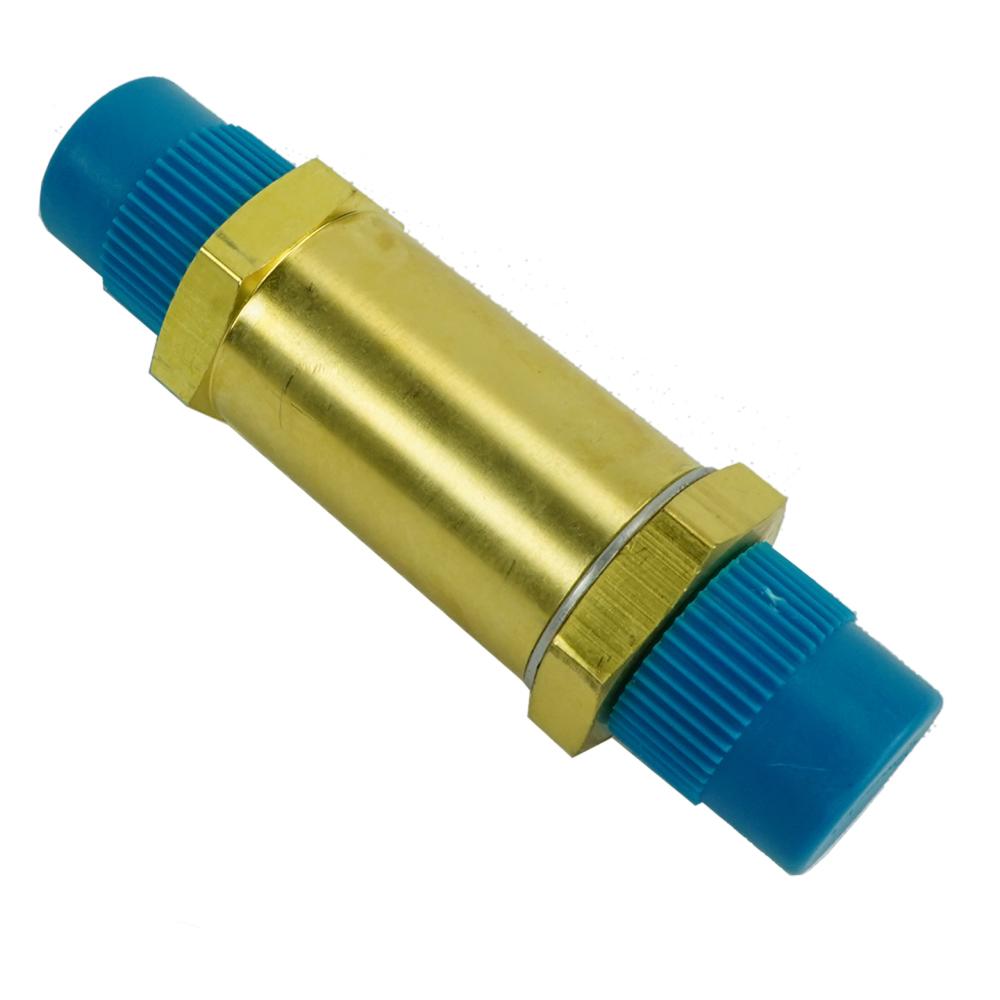

Oil Filter, 0.250 NPT Inlet, 0.250 NPT Outlet

46-230880P1
Magnetic Resonance Imaging
Brivo 355
GE Healthcare
46-230880P1
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Inlet Oil Filter
  • 316 Grade Sintered Stainless Steel Filter Media
  • Bass Body With Aluminum Gasket
  • Good Dimensional Stability

Product Overview

This inline filter is compatible for use in the hydraulic cylinder assembly which are used for elevation mechanism of the patient tables which are used with GE's Magnetic Resonance Imaging (MRI) systems. This Inline filters is used for filtration of particulates from the oil used in the hydraulic cylinder to protect the components of the hydraulic system from damage due to contamination of oil which can reduce the performance efficiency of the system. This filter assembly comprises of type 302 stainless steel spring which helps to compress the oil and make it pass through the 316 grade sintered stainless steel filter with porosity 60 microns. The aluminum gasket provides proper sealing and make the system free from leakges. The outer body is made up of brass which offers high strength, good dimensional stability and provides good corrosion resistance. This filter has two 1/4 male NPT connectors at the ends which comes with blue colored cap. These inline filters are ideal for use where space is limited.

Compatible Products

Brivo 355

Brivo 355

Optima 360 1.5T

Optima 360 1.5T

Signa Excite 1.5T

Signa Excite 1.5T

Signa HD 1.5T

Signa HD 1.5T

Signa HD 3.0T

Signa HD 3.0T

Signa HDe 1.5T

Signa HDe 1.5T

Signa HDx 1.5T

Signa HDx 1.5T

Signa HDx 3.0T

Signa HDx 3.0T

Signa HDxt 1.5T

Signa HDxt 1.5T

Signa HDxt 3.0T

Signa HDxt 3.0T
