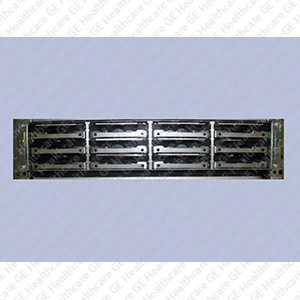

Scan Disk Array, Hard Drive with Mounting Sled Firmware Rev1
5114536-11 | |
5114536-10 | |
Computed Tomography (CT) | |
VCT | |
GE HealthCare | |
5114536-11 | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Highly reliable
- Fetch data very fast
- Very high rotational speed
- 300 GB drive capacity
Product Overview
- The Scan Array, Hard Drive with mounting sled firmware rev1 is used in Computed Tomography. The capacity of the Hard disk drive is 300.0 GB. The interface of storage used is SAS (Serial Attached SCSI), which is a point-to-point serial protocol that moves data to and from computer-storage devices such as hard drives and tape drives. The read latency is 2.0 milliseconds. The disk array is considered a commercial off-the-shelf (COTS) subassembly. The disk array weighs 60 Lbs (27.2 Kgs), and the rotational speed of the drive is 15000 RPM. The exhaust fans used in the disk array are DC fans which are brushless and have ball bearings. The disk array supports twelve (12) external 3.5-inch hot-swap SCSI HDD, two (2) hot-swap rear blowers for optimized cooling, two (2) external 68-pin HD68 SCSI connector, AC power source. It operates under the temperature range of 5-35Ë C and can accept temperature change of 3Ë C per hour. The chassis type of the disk is Rock-mountable, whose orientation is horizontal. The hard drives are hot-swappable, which means the disks can be replaced while the disk array is still in use, from the front of the disk array. LEDs are available to check the functioning of the disk drives.
Substitute Parts (price may vary):
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
Equivalent part | Part Details |
---|---|
5114536-10 | Scan Disk Array, Hard drive with mounting sled, Seagate S |
