Electro Magnetic Compatibility Filter TRI V2B - RoHS 5126999-2
| 5126999-2 | |
| 2209840 | |
| Computed Tomography (CT) | |
| Revolution ACTs | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Field Replaceable Unit (FRU)
- Reduce high frequency electronic noise
- Easy to connect/disconnect
- Three phase Input/Output
Product Overview

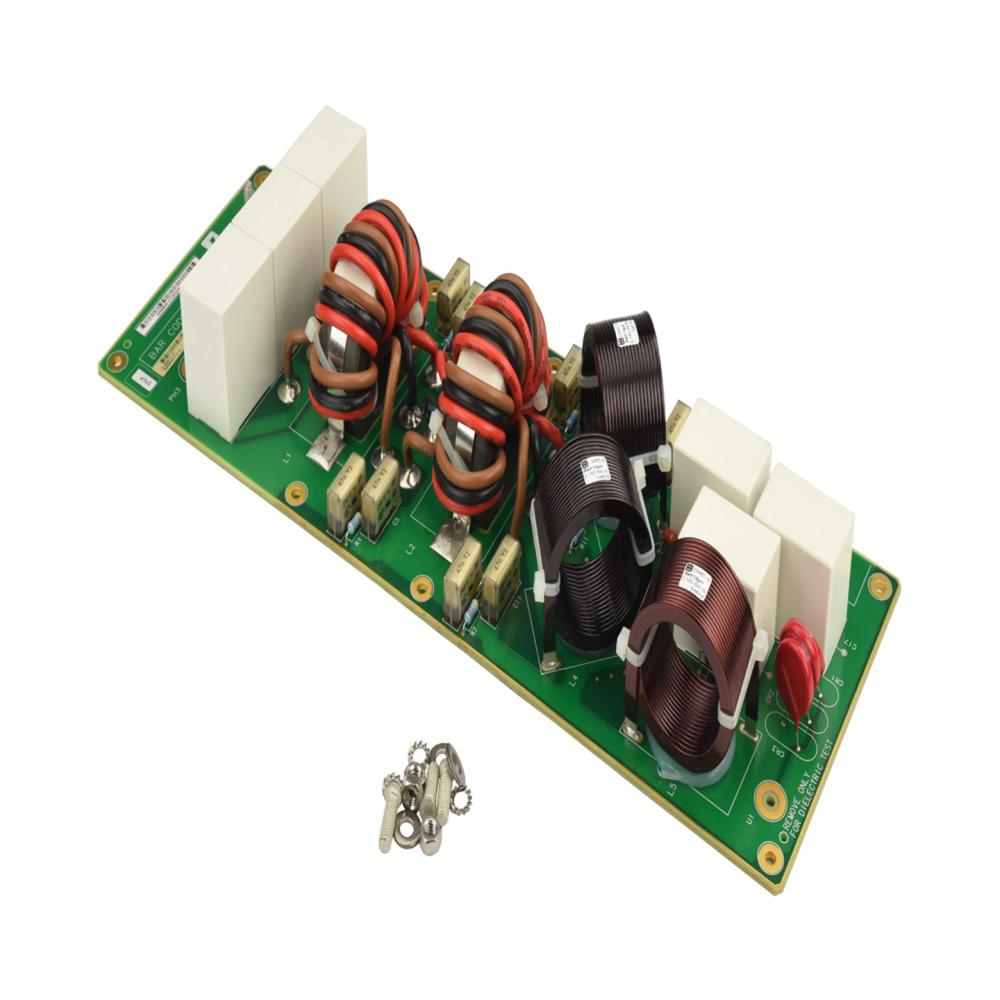

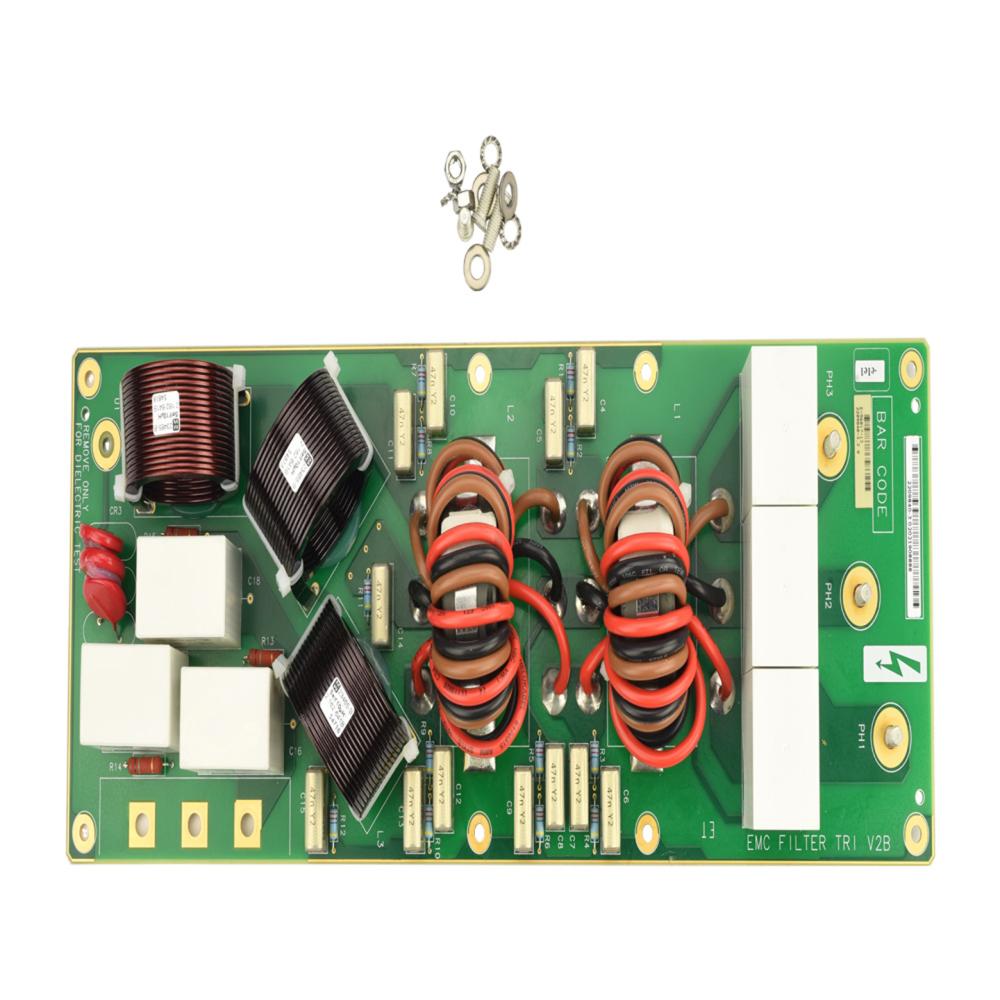

The EMC filter design is critical to the electromagnetic compatibility, EMC performance. The EMC filter provides the required level of attenuation of the unwanted signals while allowing through the wanted signals. The circuit board comprises of capacitors, varistors, inductors, resistors, air core inductors and studs. The EMC Filter printed wiring board (PWB) is a double sided board made up of FR-4 Glass fiber, which is a composite material that consists of glass fabric, electrical grade epoxy resin. The material is strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. The board thickness is specified as 2.4 mm (standard is 1.6 mm) to increase stiffness and stability. The assembly uses high quality components meeting the applicable standards for reliable operation. The circuit board includes part identification labels. This EMC filter bard can be used with GE's Brivo XR DR-F, Discovery XR656G2, Brivo 315, Brivo 325 and Revolution ACT systems.
Equivalent Item(s) (price may vary):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) (price may vary) | Item Details |
|---|---|
| 2209840 |
