Assembly Scan Window ZEUS Weatherstrip
| 5142849 | |
| 2101967 46-296858G1 | |
| Computed Tomography (CT) | |
| Brightspeed 16 | |
| GE HealthCare | |
| 5142849 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- 68 mm Wide Lexan (Polycarbonate) Film
- Reliable Performance
- Stainless Steel Bands
- Good Dimensional Stability
Product Overview

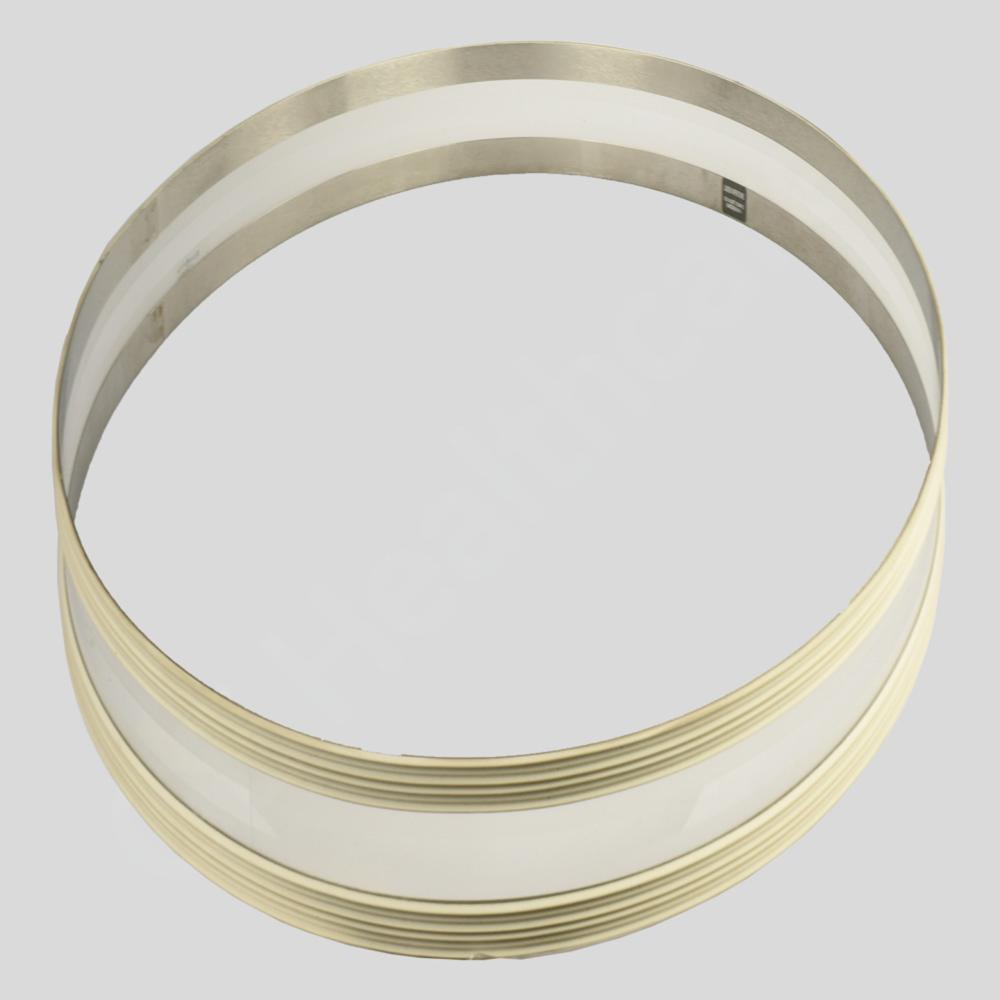

This scan window ZEUS weatherstrip assembly consists of AISI 301 Grade Stainless Steel strips that are bent to form a circle of 27.95 inch diameter and welded to form the ring structure. The two rings are concentrically spaced at a distance of 68 mm if measured from the outer edges. Space between the ring is covered using Lexan Polycarbonate sheet of 68 mm width and pasted on the inner surface of the ring strips/bands using double coated film tape. The Lexan film comes with a 12.8 mm transparent window across its length/circumference which is free from any abrasion, fingerprints and scratches while the rest of the area comes with frosted finish. This scan window ZEUS weatherstrip assembly is used with GE's Computed Tomography systems.
Equivalent Item(s) (price may vary):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) (price may vary) | Item Details |
|---|---|
| 2101967 | MYLAR WINDOW |
| 46-296858G1 | SCAN WIN ASSEMBLY |
