Power distribution Board Assembly
| 5315104 | |
| Ultrasound | |
| LOGIQ P3 | |
| GE HealthCare | |
| 5315104 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- FRU (Field Replaceable Unit)
- 3x LED indicators for power status
- Controls Power Button LED
- High Quality FR4 Board
Product Overview

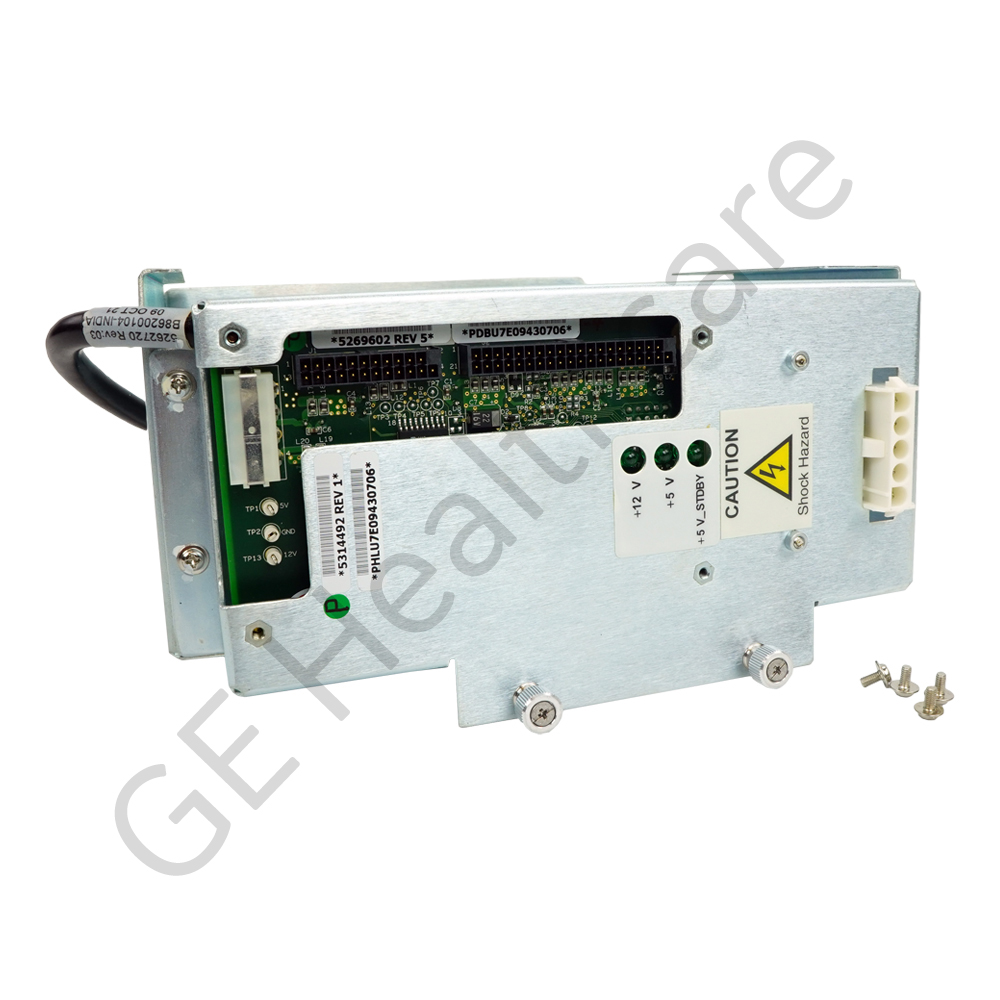

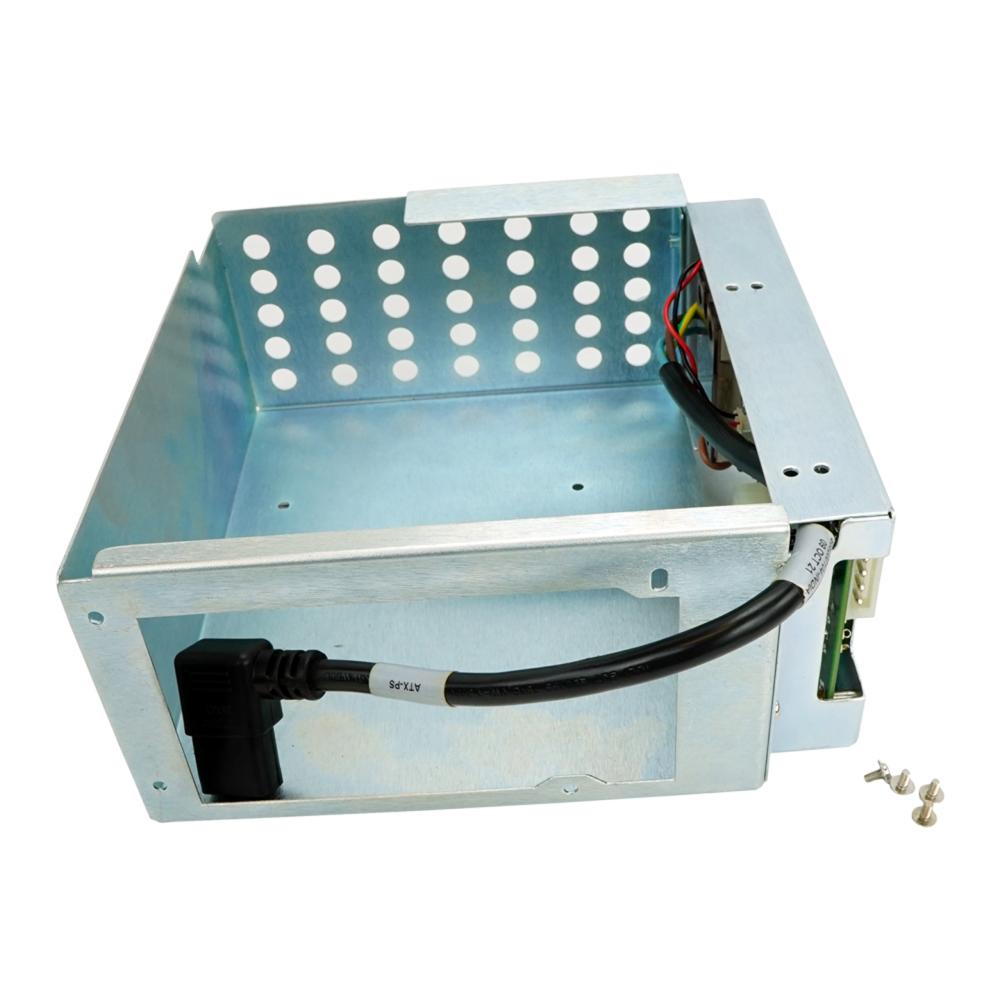

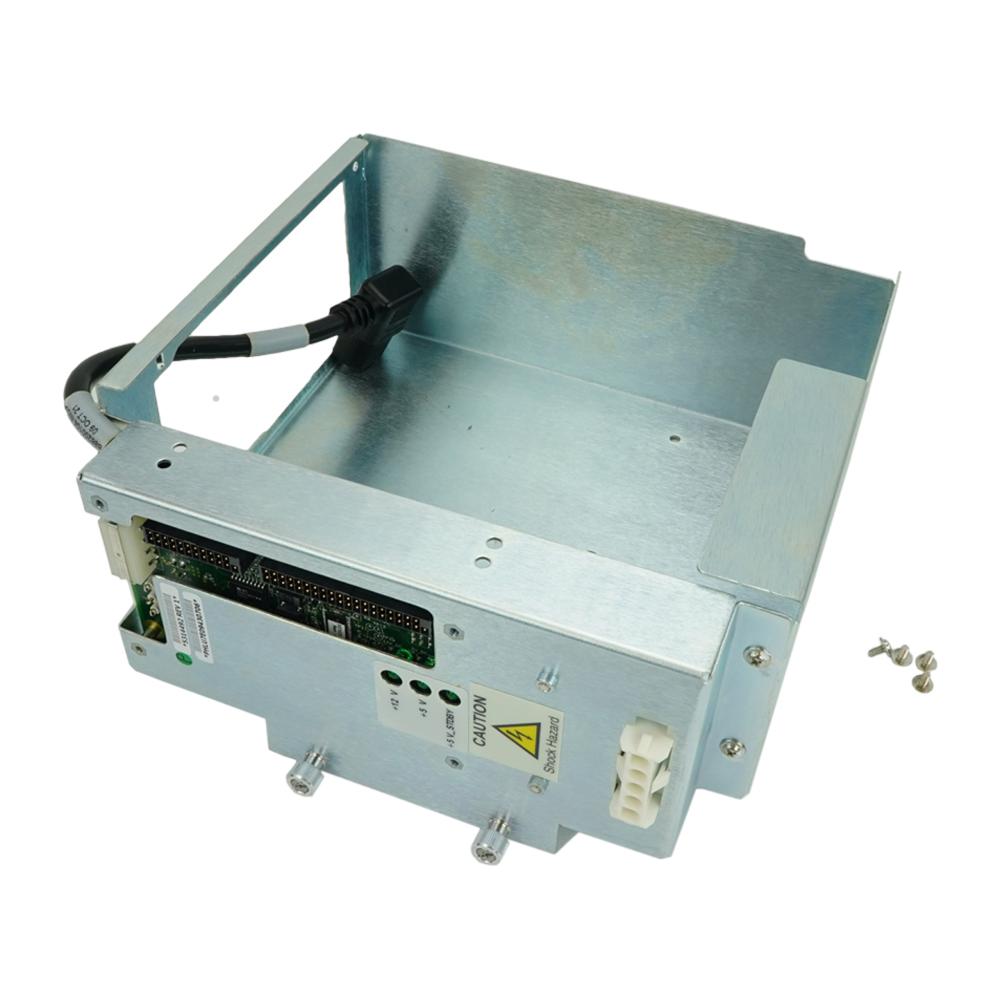

The Power Distribution Board (PDB) Assembly includes a Circuit Board, Mounting Barckets, Cables and screws. All these parts are assembled together to form complete assembly. The Power distribution board is the interface between the main power supply unit and the rest of the system, all the Power to the various PWA’s are distributed from this board. The cicuit includes a microcontroller to generate logic control signals and controlling the LED color of the POWER button, it drives Amber color when the system is in standby state and Green when the system is ON. The inputs for the ON/OFF condition of the system comes from the MST board via a connector. It has LED indicators for 3 voltages - +5V standby, +5V and +12V. The circuit board is 4 layer board made up of a flame retardant glass laminated FR4 material. A steel,cold rolled close annealed brackets are used in the assembly. Brackets zinc plated to add more corrosion resistance to the surface of the cover. The assembly comes with required cabling for its connection with the system and it can be used with GE's Logiq P3 Ultrasound systems.
