Power Control Board 5339138
| 5339138 | |
| Ultrasound | |
| LOGIQ C3 | |
| GE HealthCare | |
| 5339138 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- FRU (Field Replaceable Unit)
- Controls AC power of external and inner printer ports
- Over Temperature Protection
- High Quality FR4 Board
Product Overview

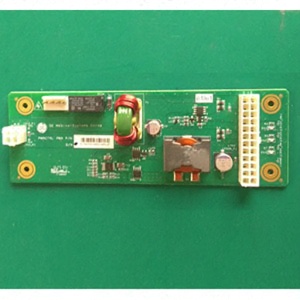

The Power Control board is the interface between the main power supply unit and the rest of the system, all the Power to the various PWA’s are distributed from this board. The board receives 12 VDC input from ACDC power module and provides multiple output voltages at output, which are further connected to the system through cables. It also controls the AC output to the external printer port and inner printer port through AC relay, accordind to status of D12V_ON signal. The board includes a OTP (Over Temperature) module which is used to monitor the temperature near the MOSFET, when temperature on the OTP chip reaches 75 deg, the system will be turned off. The circuit board is made up of a flame retardant glass laminated FR4 material and all the component used are of high quality which ensures long life. This board can be used with GE's Logiq C3 and C5 Ultrasound systems.
