SP for PT air filter Assy

5343009
2163534
PET Radiopharmacy
MINItrace Qilin
GE Healthcare
5343009
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Standard 5 Micron Filtration
  • Quick-disconnect Polycarbonate Bowl
  • Nylon Bowl Guard
  • High Air Flow Capacity

Product Overview

Part Title: SP for PT air filter Assy
Sub-System: Target System
Part Type: Corrective part
Part Compatibility: PETtrace 800 , MINItrace Qilin

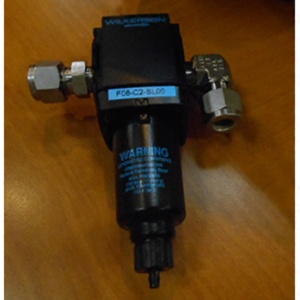

This filter assembly comprises of particulate filter assembly, a male tube fitting connector at the inlet and male tube fitting elbow at the outlet. This type of filter is used for removal of solid particle contaminants down to 5 microns and the separation of bulk liquids from compressed air system. It can support a maximum inlet pressure of 150 psig. The turbine shaped upper baffle made up of acetal helps in directing the inlet air downward and outward in a circular pattern which separates the gross particles from the air, which then flow down the inside of the polycarbonate bowl after passing the lower baffle. Thelower baffle restricts the contaminants from re-entering the air flow stream. The partially cleaned air passes through the sintered polyethylene filter element which offers effective filtration of air with minimum pressure drop, provides airflow rate of 25 CFM. The thread positions of tube fittings connected at the inlet and outlet are properly sealed using high quality dimethacrylate ester sealant and the openings are covered with tape to avoid dirt in the filtration system. This Filter assembly is compatible for use in the GE's PET Radiopharmacy Systems.

Substitute Parts (price may vary):

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2163534 FILTER HE-COOLING 900346
