LOGIQ E BT12 LCD Panel 5419659
| 5419659 | |
| Ultrasound | |
| Other Ultrasound | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Advanced
- Surface can be cleaned by wiping gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene
- Does not contain Lead (Pb), Mercury (Hg), Hexavalent Chromium, Poly Brominated Biphenyls (PBB), Poly Brominated Diphenyl Ethers (PBDE) more than 0.1% by weight and Cadmium (Cd) more than 0.01% by weight
- Anti-static field packaging for ESD sensitive materials
Product Overview

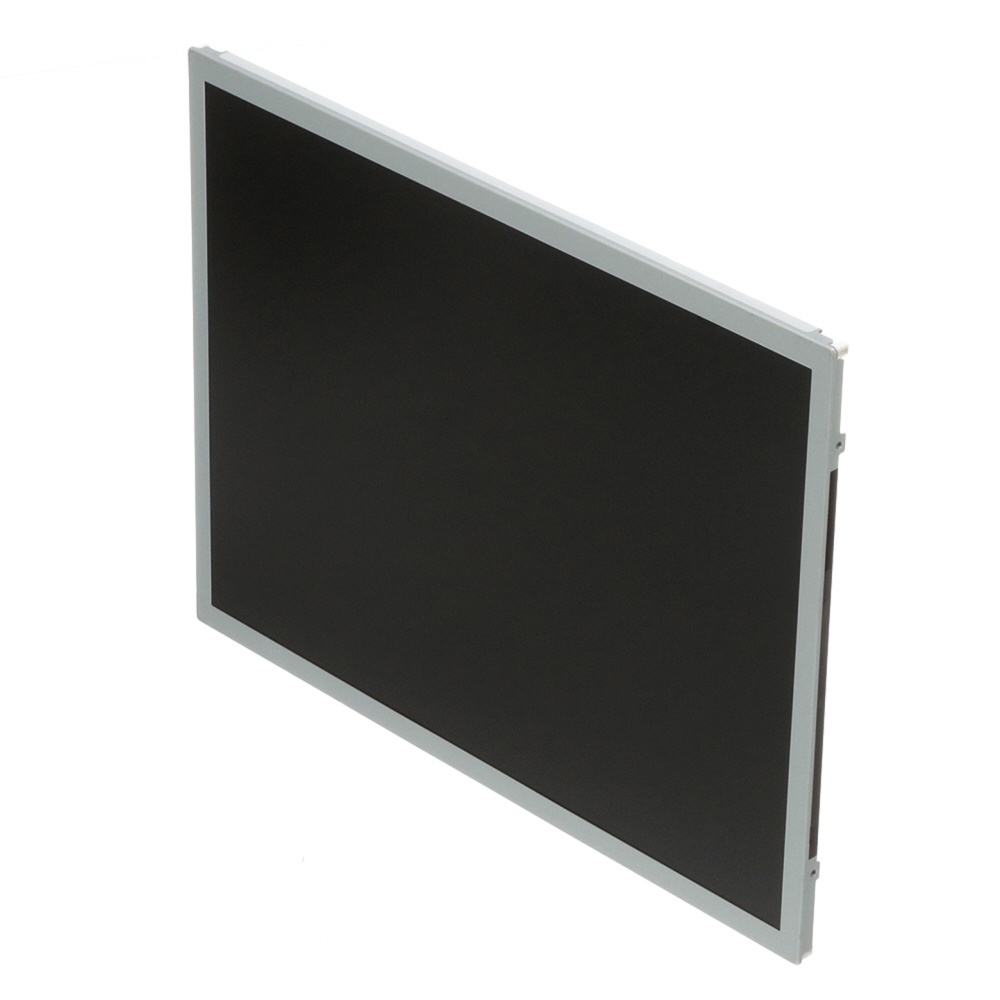

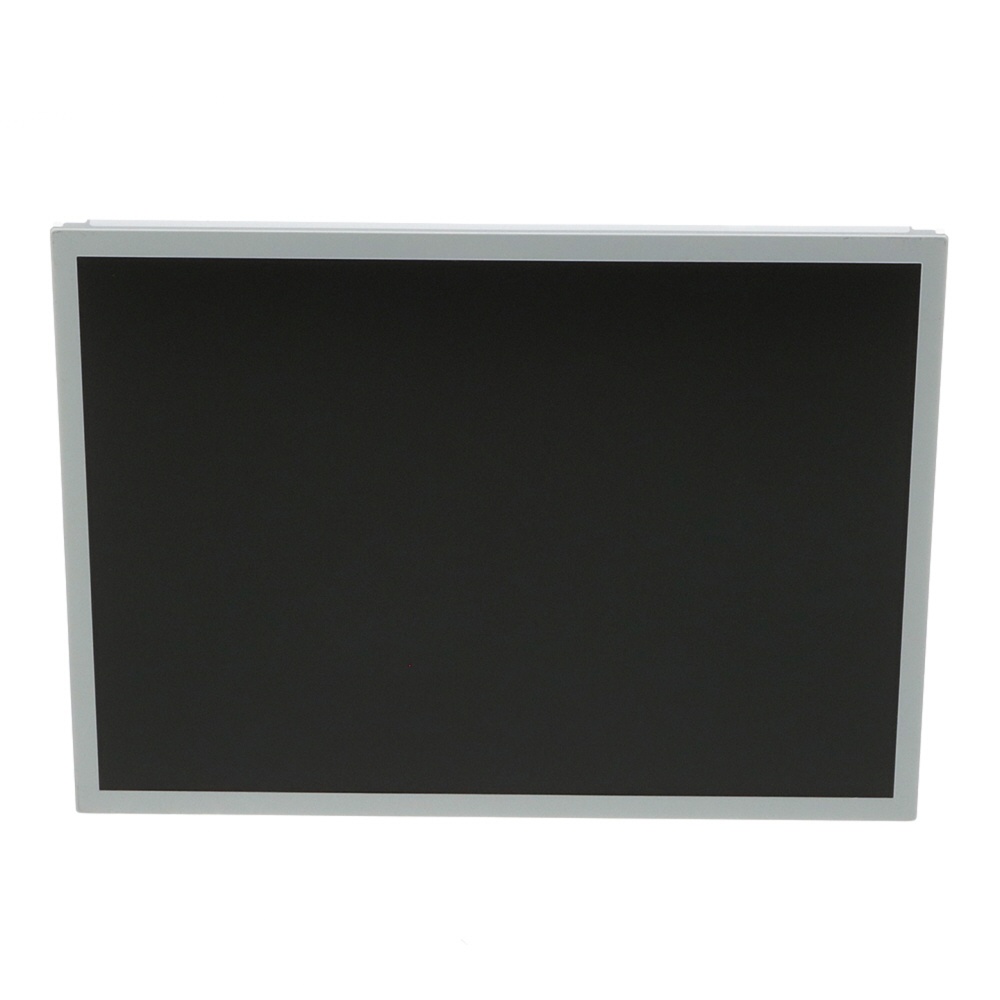

The LOGIQ E BT12 LCD Panel is a portable ultrasonic system. The LCD assembly comes as a part of it as a display unit of compact ultrasound images. It is the 15.0 inch color TFT/LCD Module. This module is designed for a display unit of compact ultrasound. The screen format is intended to support the XGA (1024 (H) x 768 (V)) screen and 16,777k colors (RGB 8-bit data driver) or 262k colors (RGB 6- bit data driver). All input signals are LVDS interface compatible. The LED driver circuit and the PWM circuit to drive the backlight are built into the module. The module has the character of anti-glare. The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarized.
