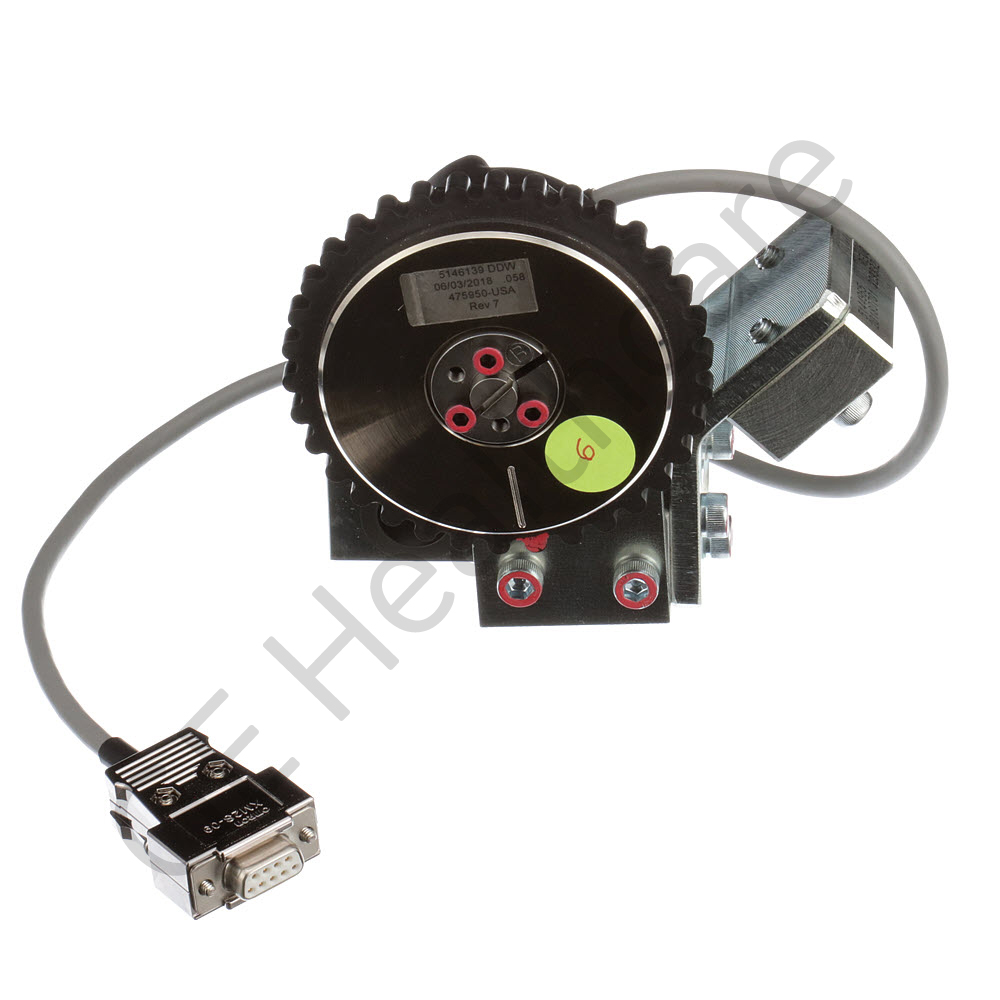

Gantry Encoder Assembly with Bush Nemicon
| 5723262-2 | |
| 5182194-3 5311936 5723262 2328307 2369747 5149729 5182194-2 5182284 5182284-2 5723262-3 | |
| Computed Tomography (CT) | |
| Other Computed Tomography (CT) | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Gantry encoder assembly with LED
- gear and bush
- Inbuilt encoder electronic circuit
- Maintenance free
Product Overview
The Gantry Encoder Assembly is a custom designed part used in CT scanner equipment. The assembly is comprised of an encoder, cable, connector, bearing, screw, nut, adhesive and lock washer. The bearing is made up of high quality cold finished steel. The optical type incremental encoder generates an output encoded signal by allowing a LED light to pass through the transparent rotating disc. The encoder signal is amplified to a final output square wave signal. The encoder has built-in twisted shielded cables, 9-pin D-sub connector and cable clamps. This gantry encoder is being used in various medical machines such as PET Discovery ST 4-Slice, CT Revolution EVO 64/128-Slice, PET Discovery STE 8-Slice, CT Optima CT660 32/64/128-Slice, PET Discovery 600, CT Revolution EVO 64/128-Slice, PET Discovery ST HP 4-Slice, NM Infinia II
- PET Discovery STE 16-Slice, CT LightSpeed 5.X RT 4-Slice, PET Discovery ST 128-Slice and CT LightSpeed 7.X VCT 64-Slice, among others.
Substitute Parts (price may vary):
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 5182194-3 | SL4 ENCODER ASM, with-LED, with MD gear, ROHS |
| 5311936 | Shipping collector for Axial Encoder Assembly. |
| 5723262 | The Gantry Encoder Assembly consist of an incremental opt |
| 2328307 | |
| 2369747 | |
| 5149729 | SL4 ENCODER ASM |
| 5182194-2 | |
| 5182284 | 5182284 |
| 5182284-2 | 5182284-2 |
| 5723262-3 | FRU GANTRY ENCODER ASM WITH BUSH DYNAPAR |
