End Cap Top Outside Left (West)

6600-1340-500
Maternal-Infant Care
Giraffe OmniBed
GE HealthCare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • High grade materials
  • Excellent corrosion and wear resistance
  • Free of mold release
  • High surface finish

Product Overview

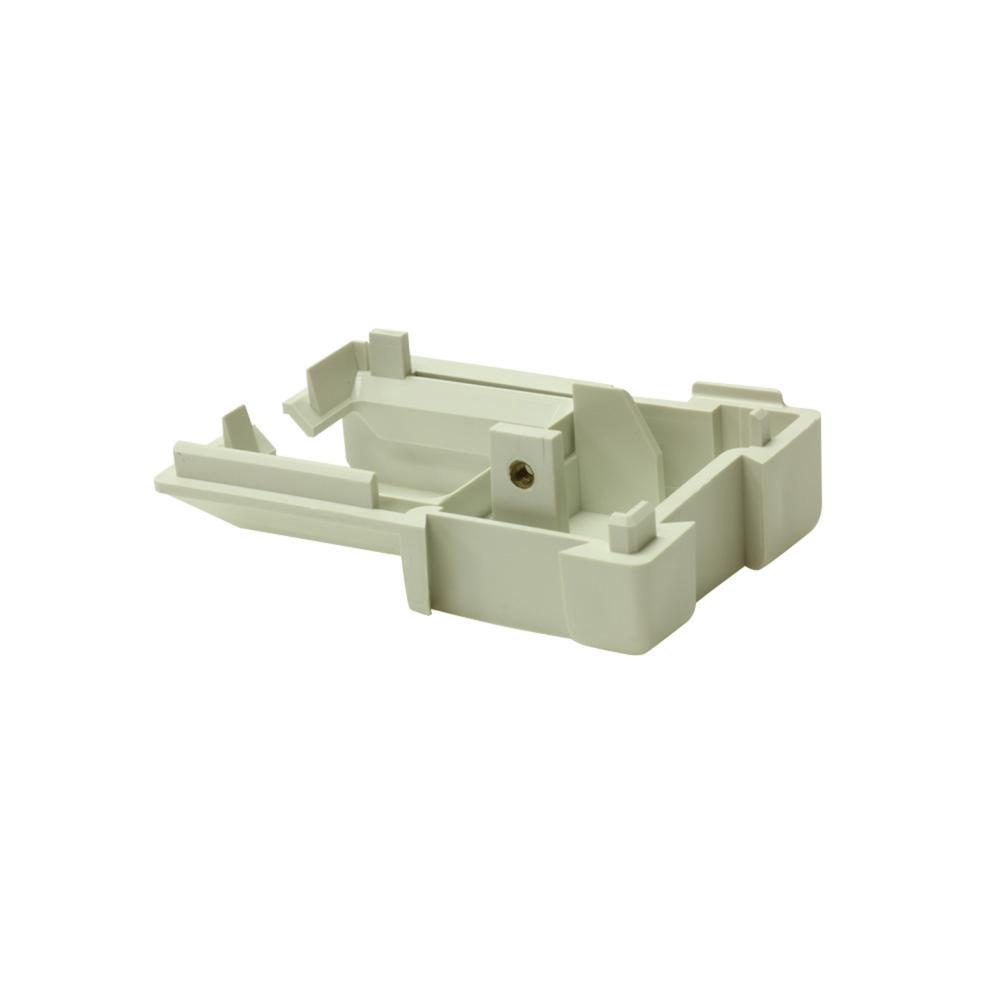

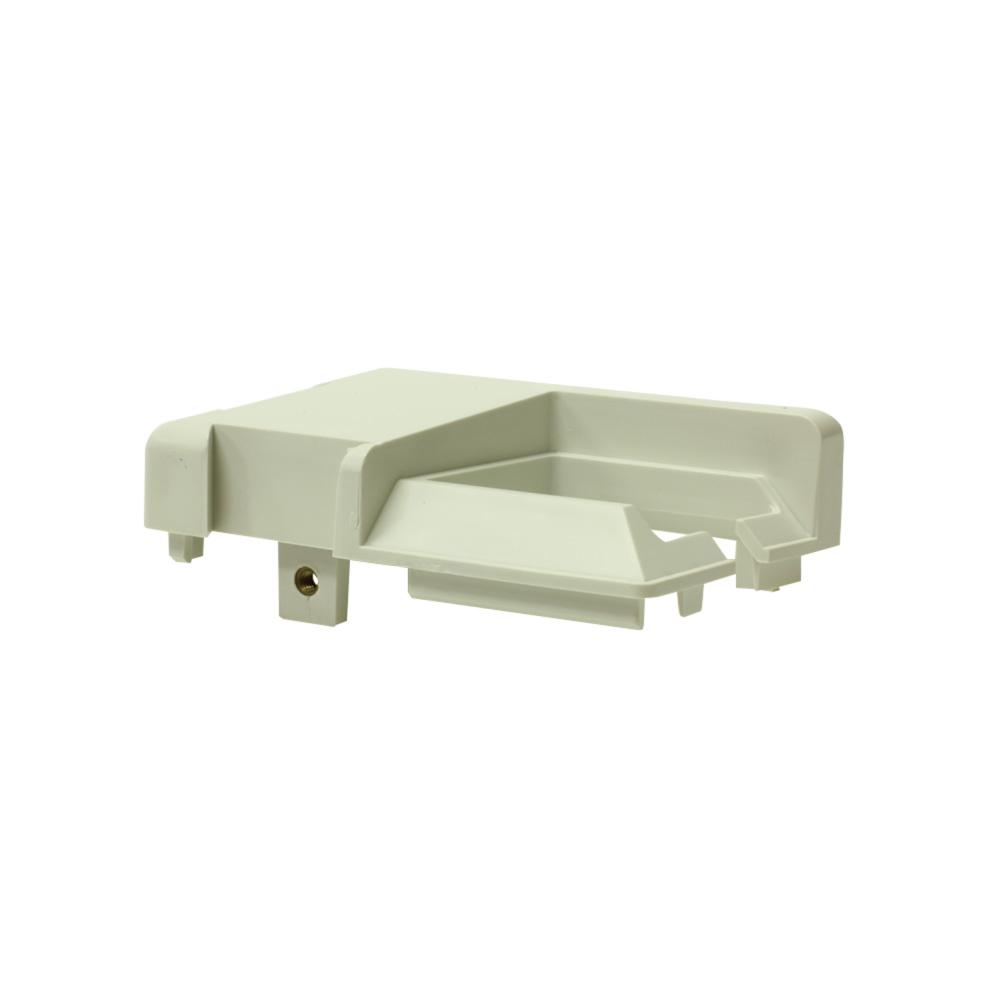

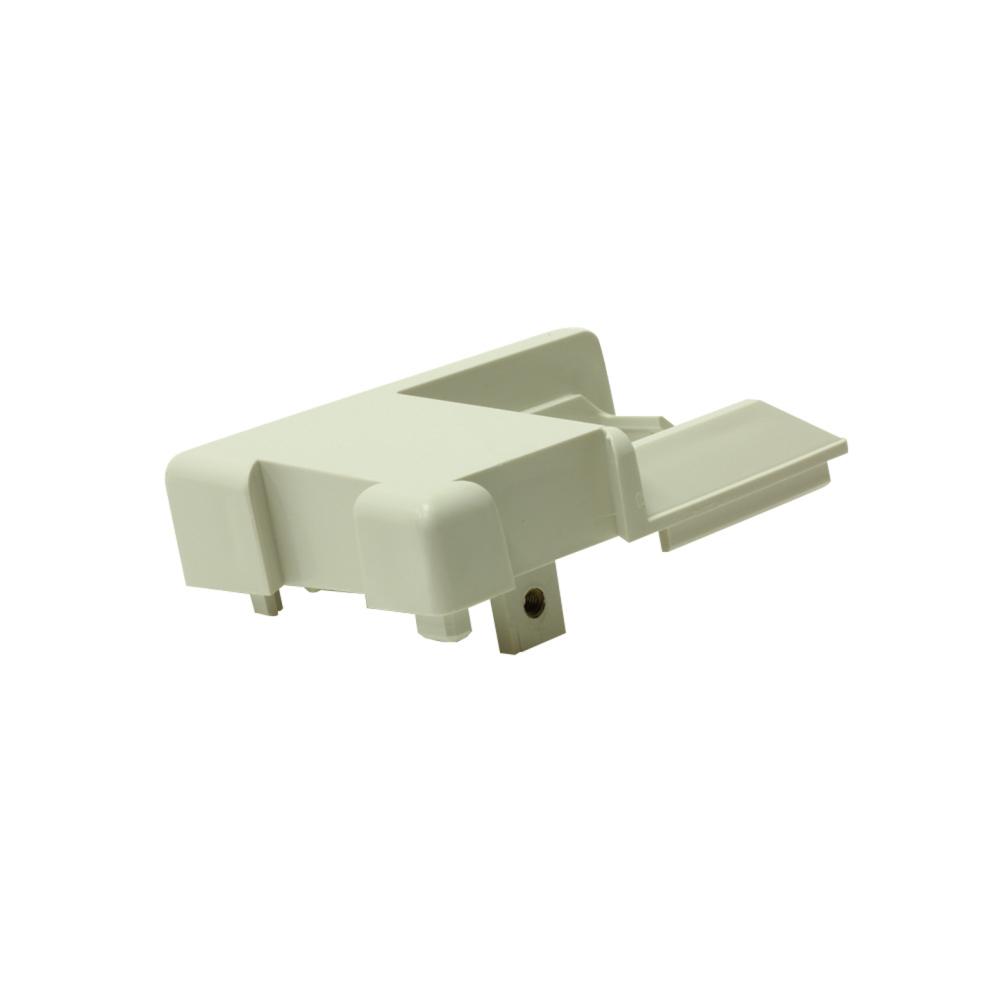

The Endcap Upper West is used to seal the upright assembly. The Endcap is manufactured using high precision injection molding with surface finish of MT11500. The Injection molding manufacturing process helps to achieve good product consistency. The high dimensional accuracy achieved using process tolerance of about ± 0.004 inch ensures perfect fit of the part in the required assembly. A M4 brass insert is provided in the part with the help of which it can be securely attached to the upright assembly. The insert used is specially designed for plastic parts and is equipped with knurls and undercuts which helps providing good assembly strength. The High Gloss ABS used ensures good mechanical properties like good impact strength and rigidity along with gloss which enhances the appearance of the part. The part is RoHS compliant per GE standards.

Compatible Products

Giraffe OmniBed

Giraffe OmniBed
