Spring Constant Force Lower Buoyancy
| 6600-1465-500 | |
| Maternal-Infant Care | |
| Other Maternal-Infant Care | |
| GE HealthCare | |
| 6600-1465-500 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Extensive linear range
- High corrosion resistance
- Strong force yield within small spaces
- Ability to perform in high temperatures
Product Overview

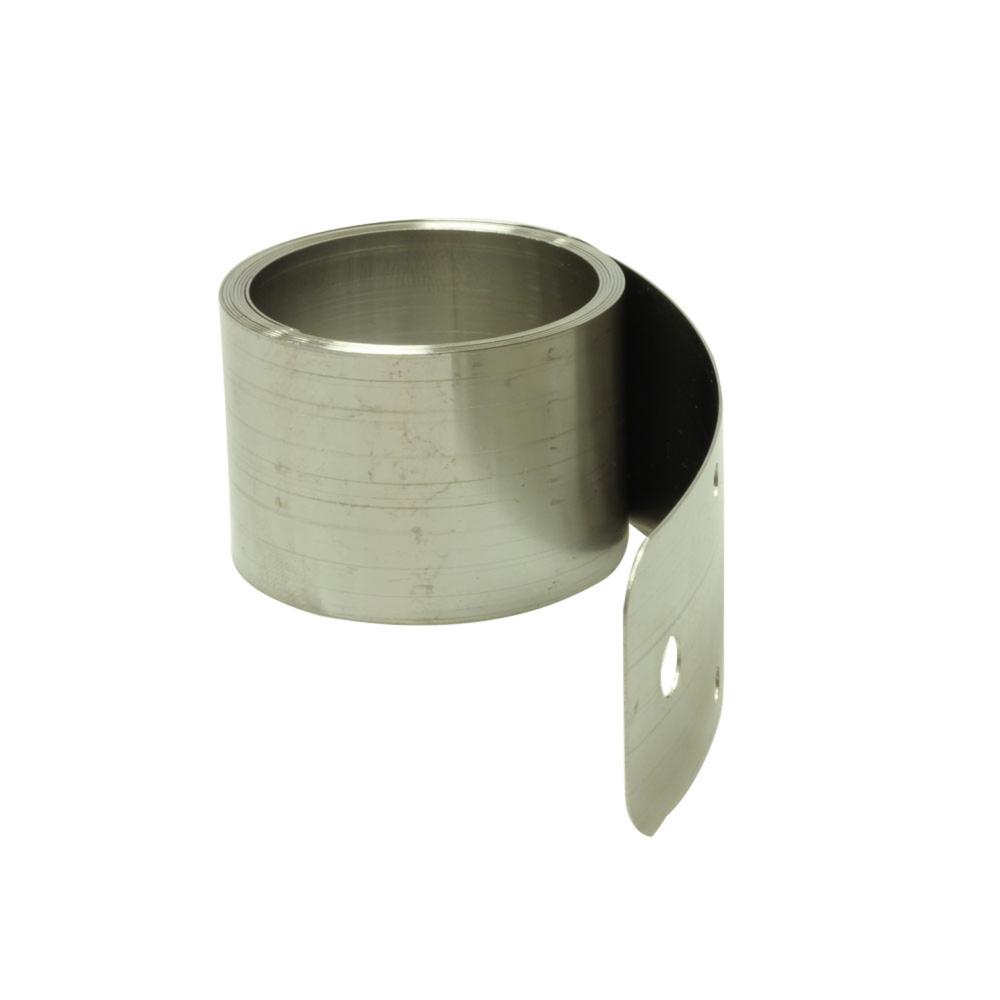

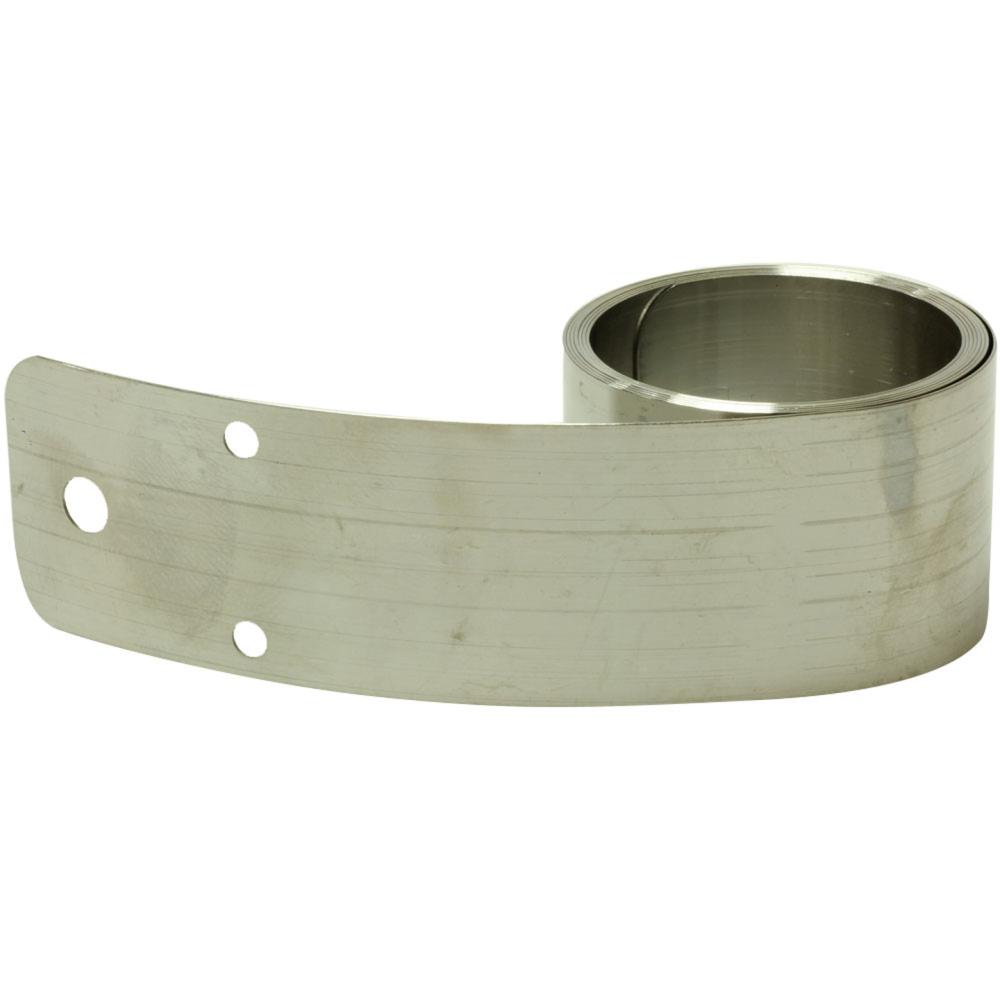

The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration. The life of the spring is determined by the relation between the diameter of the spring and the thickness of the material. Type 301 is an austenitic stainless steel with a nominal composition of 17% chromium and 7% nickel, which provides good strength and ductility when cold worked. It also has excellent corrosion resistance properties. This part is used in Giraffe™ OmniBed - Lower Buoyancy machines as well as Modular, ARC Aespire 7900, ARC Avance Carestation and MIC - Other Infant Care.
