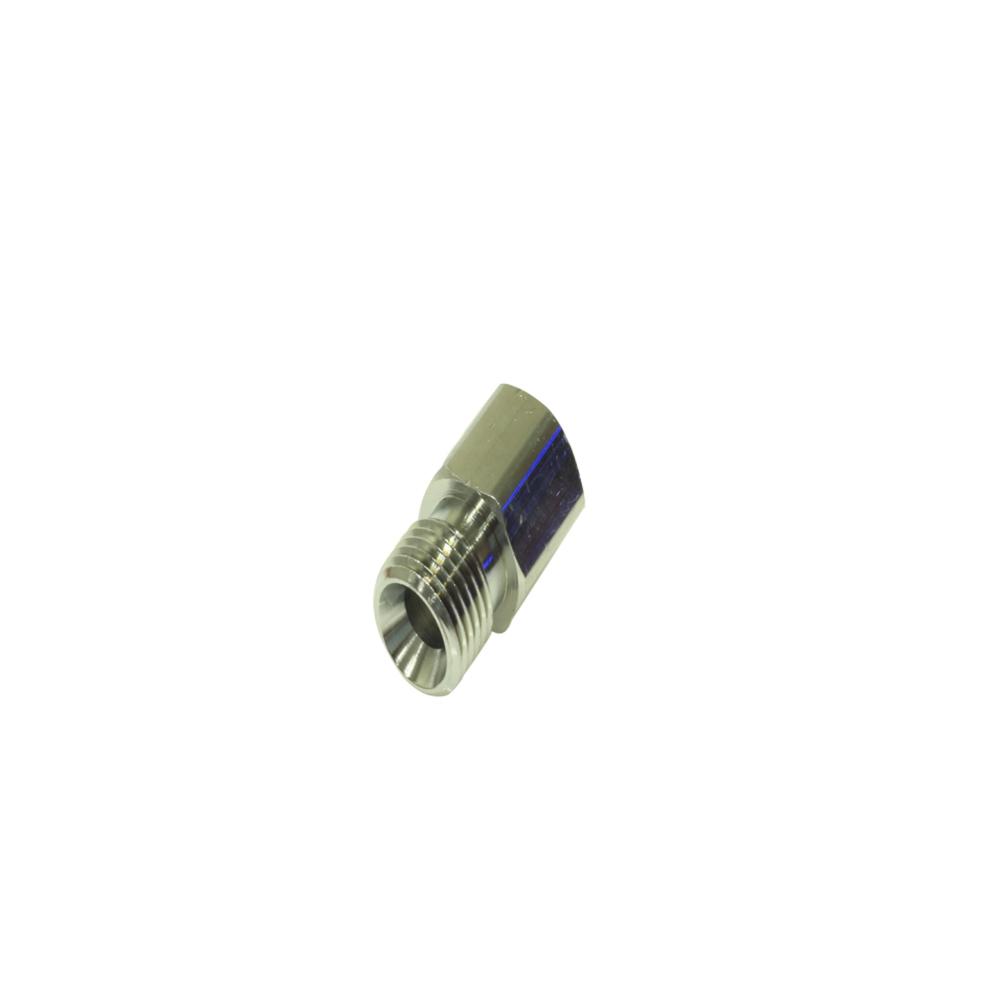

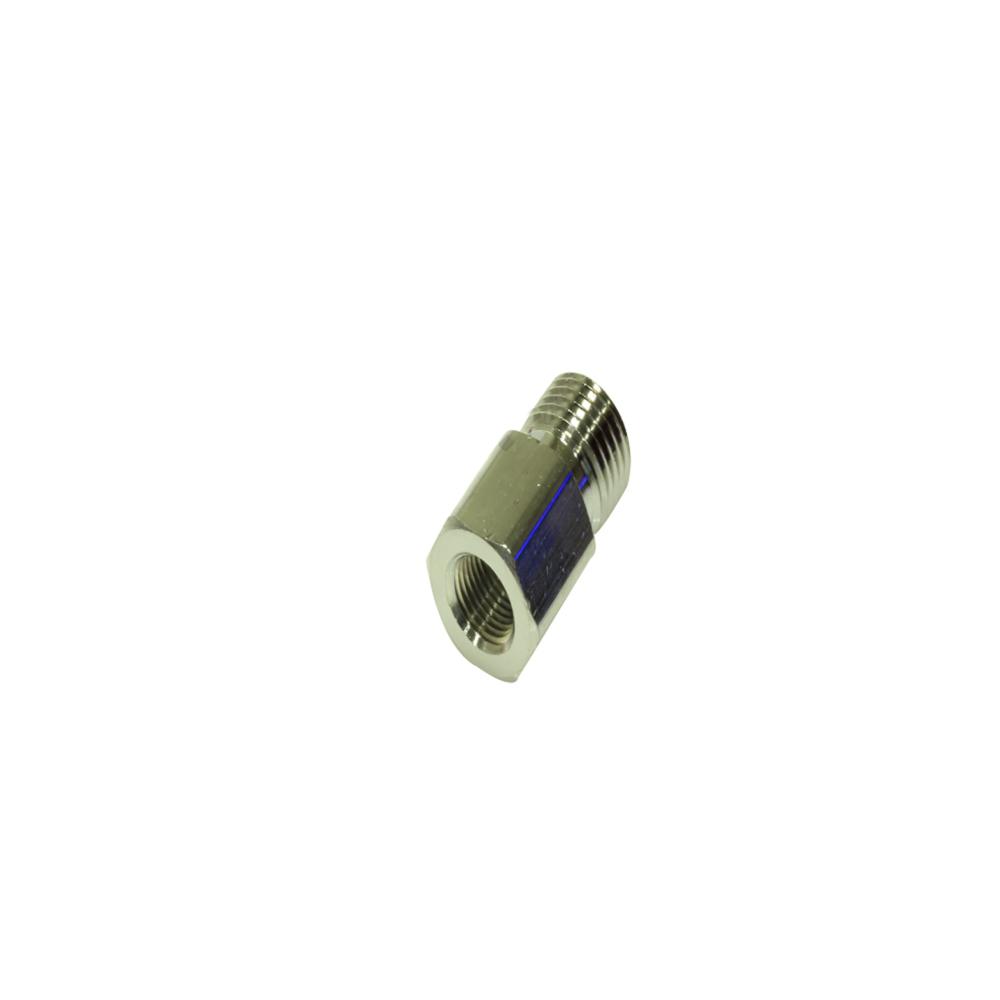

Adapter DSM O2 1/8 NPTF with Hexogonal
6700-0529-800 | |
Maternal-Infant Care | |
Infant Resuscitation System | |
GE HealthCare | |
N/A | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Male And Female National Pipe Threads (NPT)
- Good dimesional stability
- Good corrosion resistance
- Good Sealing
Product Overview
This 1/8 inch FNPT Fitting is used in the supply line of Infant Resuscitation systems (IRS) for Medical Grade Oxygen Gas. These adapters consist of two fitting halves with male and female National Pipe Threads (NPT). The nickel plated adapter is corrosion resistance, and provides good surface toughness at high and low temperatures. The adapter is designed as per DISS (Diameter Index Safety System) which establishes a standard for non-interchangeable, removable connections for use with Medical Gases (200 psi max.), Vacuum (Suction), and WAGD (Evacuation) Service. Non-interchangeable indexing is achieved by a series of increasing and decreasing diameters in the components of the connections. The male and female thread designs on each end allow it to be used with all National Pipe Threads. This fitting can be used with GE's Infant Resuscitation Systems.
