Module VAC Regulator Kit
| 6700-1225-800 | |
| Anesthesia Delivery | |
| Aespire | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Resistant to wear and weather
- Resistant to hydrocarbon fuels and petroleum base oils
- Leak proof
- Fast response to changes in suction requirement
Product Overview

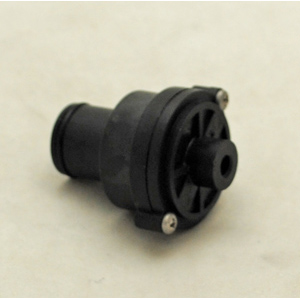

The vacuum regulator module is provided as a part of suction control module which in turn is a part of integrated suction regulator manifold in an anesthesia machine. The vacuum regulator is used to control the suction during Anesthetic Gas Scavenging System (AGSS). It is threaded onto the back of control panel knob present in the panel assembly. Two O-rings (one large and 1 stem) are installed on regulator for sealing purpose. The panel assembly contains knobs which can be manually rotated thus adjusting the suction level in the machine. The panel is installed onto the wall of the machine and connected to an external vacuum source. It is provided as a part of a wide range of anesthesia machines like XR Optima XR220amx, Aespire 7100, Aespire 100, Aespire 7900, ARC Aisys, ARC Aestiva MRI, Anesthesia Other, ARC Aespire View, Avance, MIC Panda™ iRES Warmer, ARC Aespire 7900, Aestiva 7100, ARC Aestiva 3000, Carestation 650c, Avance CS2, Aisys CS2, MIC Giraffe™ OmniBed, Carestation 620 and Aespire View.
