Product Overview

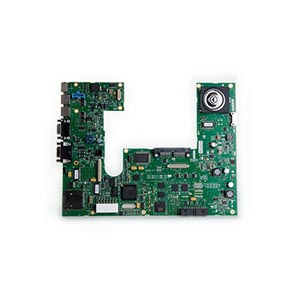

The MAC CPU board is the main circuitry for the MAC-5500 electrocardiograph. The board is powered by an Atmel AT91RM9200 processor with PC Super Input/output controller and three peripheral microcontrollers. The board also have SDRAM and Flash memories and comes with other required interfaces and switches. This mainboard works only with Softwares V 10B and 9D. V 10B is used for MAC 5500 HD , V 9D is used for MAC 5500 non HD and MAC 3500. The board does not require any calibration or adjustment during installation. The External User I/O Connectors on the board are 9 pin female D-Sub for analog I/O, two 8-pin female Mini-DIN for powering external devices, a PS2 for keyboard and a VGA connector for display panel. This MAC 5500 mainboard 801212-008 replaces the 801212-007 mainboard and can be used with GE's MAC 5500 and MAC 3500 systems.

Compatible Products

MAC 3500

MAC 3500

MAC 5500

MAC 5500

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details

Programmed SD Card MAC5500/MAC 3500V9D is an SD type memo


Programmed SD Card MAC5500/MAC 3500 (v10B Software), Used

  • MAC 5500 / 3500 mainboard / MAC 5500 / 3500 mainbo
  • Printed Circuit Board (PCB) MAC CPU - RoHS
