Gel Cup
| GA307239 | |
| Ultrasound | |
| VIVID E80 | |
| GE HealthCare | |
| GA307239 | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- High scratch resistance
- Good surface finish
- Excellent mechanical properties
- Lightweight
Product Overview

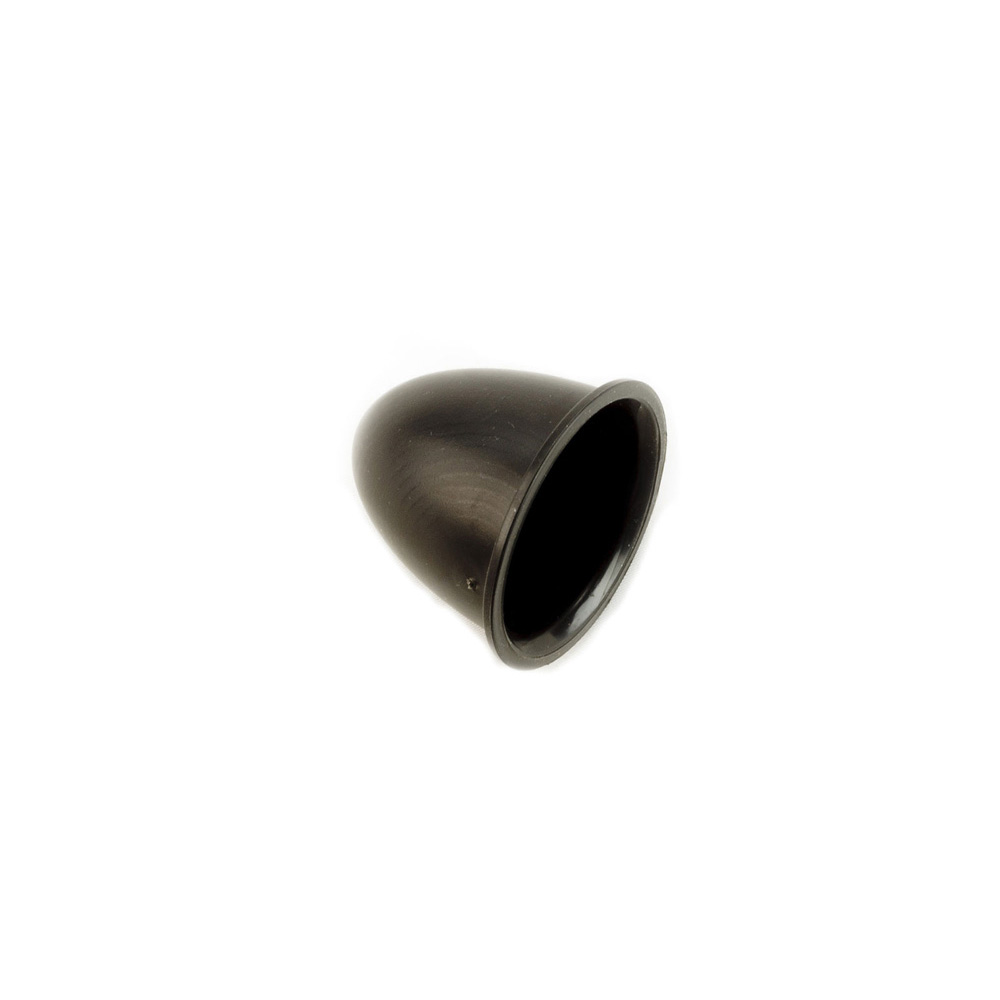

The Gel Cup is one of the parts in left top/right handle assembly in Vivid E90 medical system. It is made up of Dryflex® 500700S (plastic). Dryflex® 500700S is an unfilled styrene ethylene butylene styrene copolymer based Thermoplastic Elastomer (TPE). The material of the gel cup is 100% recyclable, and also has excellent weather and air-ageing resistance. The good surface finish is maintained over the entire part. It works in wide variety of temperature ranges, from -50 to 125° C. The excellent mechanical properties like elongation, compressing set, tensile and tear strength ensures the long life span for the gel cup. The material offers good chemical resistance, which excludes organic solvents, aromatic and vegetable oils. This gel cup is being used in other medical systems such as UL Vivid q, UL Venue 40, UL IT EchoPac, UL Voluson 730 Expert, UL Vivid E9, UL Venue 40, UL Vivid E95 R2, UL Vivid E9, UL Voluson 730 PRO, UL LOGIQ Book XP, UL IT EchoPac, UL LOGIQ e, UL Vivid E9 Expert, UL Venue 50 and UL Vivid E80.
Compatible Products
Vivid E9
Vivid E95
The VividTM E95 is a premium 4D cardiovascular ultrasound system designed to help you reach new heights of care efficiency and effectiveness.
Better image quality. Faster volume rates with higher processing power. Smaller probes.† With the Imaging. Elevated. release, cSound 2.0 facilitates a new level of image quality and 4D volume rates by expansion of the processing power and the development of new beamforming algorithms. As you navigate the increasing challenges of cardiovascular care, the Vivid™ E95 cardiovascular ultrasound system brings you the uncompromised imaging you need more than ever. From the beamformer to the image processor (GPU) to the probes, we’ve advanced key elements of the system to deliver a solution that’s Better. Faster. Smaller.
One patient, one probe The new one-probe adult 4D TTE solution on the Vivid™ E95 provides an excellent ergonomic workflow solution with uncompromised 2D, 4D, color and Doppler image quality performance at ultra-high volume rates - all with a single probe. This allows for complete and comprehensive diagnosis with one probe and avoids switching of probes, thereby reducing exam time and helping you move swiftly through your work with minimal muscular stress and strain on the operator.
