CSBC, Prodigy, Spare Part, Service Tested
| LU41170ST | |
| LNR41170 | |
| Bone Mineral Density (BMD) | |
| Prodigy | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- High electrical property
- Good mechanical property
- Good insulation property
- Chemical resistant
Product Overview

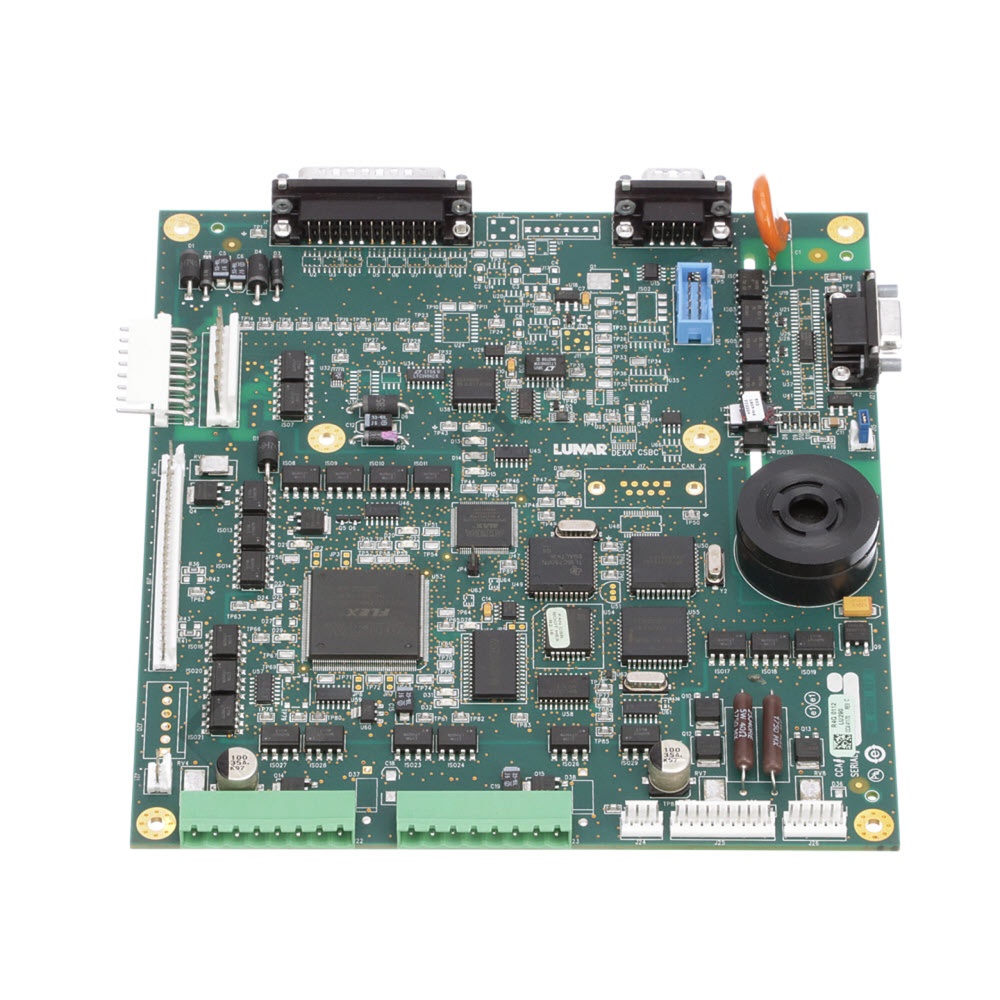

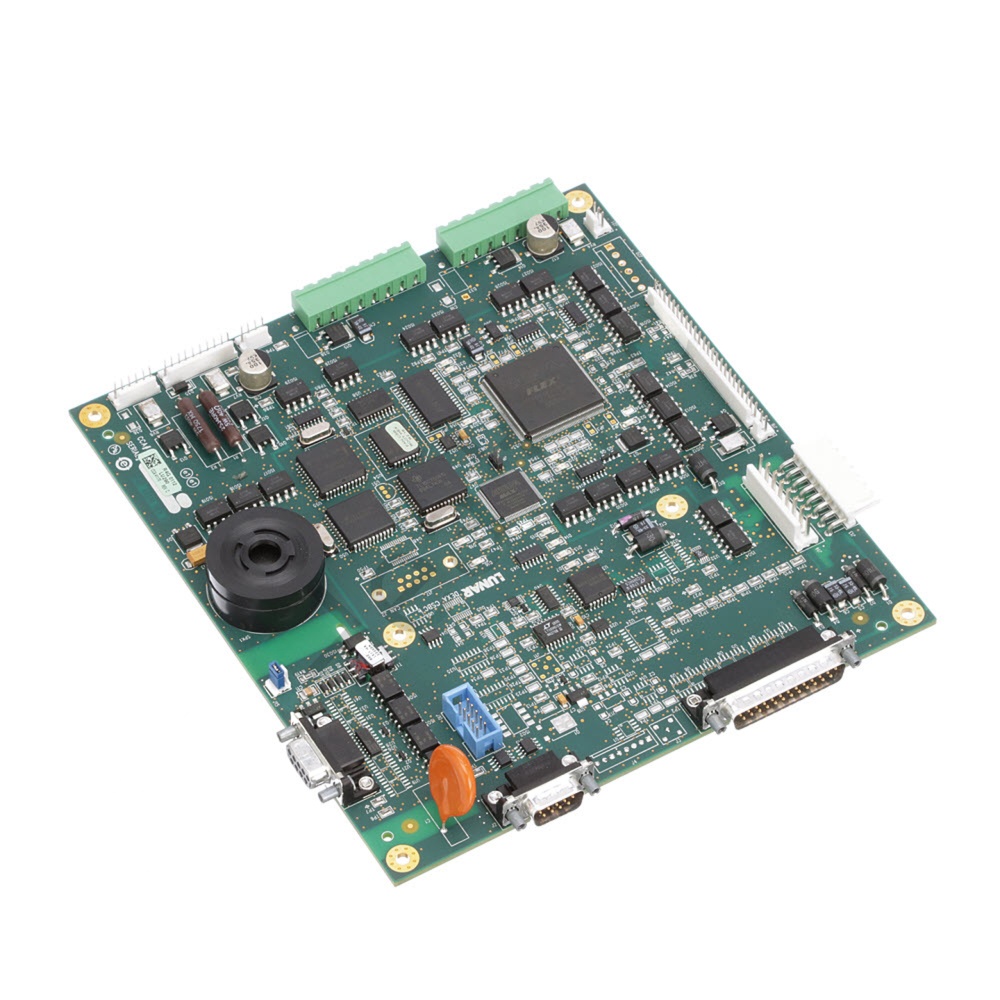

The CSBC, Prodigy, Spare Part, Service Tested is a document used to define the procedure necessary for testing the Prodigy CSBC for service replacements. This document is for current service tested prodigy CSBC. The Combined Single Board Controller (CSBC) Prodigy is a printed circuit board used in the electronics pan. The CSBC provides overall operation and control of the scan table. This CSBC prodigy is made of a composite material known as Epoxy Glass Laminate FR-4. It is a printed wiring board (PWB) is an eight layer rectangular board measuring 7.400" x 8.100". The printed wiring board is mounted in the via four mounting holes located 1/4" from each corner and 2 additional interior mounting holes. It employs an Intel 80C251 micro-controller as its processor. This processor provides 1K of on-board RAM and no on-board ROM. It also have diagnostic LED`s which are used to indicate power supply, failsafe mode and other indications. The controller is clocked at 16 MHz using a crystal. The majority of scanner related programmable logic functionality is contained in the FLEX PLD, an Altera EPF6024AQC208-3 device. Device programming is handled exclusively by the CPU. The CSBC prodigy board consists of sub parts like capacitor, power rectifier, plugs, transistor, chip resistor, isolation transformer. This part is used in products like XR (BMD) Prodigy, Definium 8000, AMX 4, PET Discovery 690, XR (BMD) Prodigy Compact Pro and UL Voluson 730 Pro.
Equivalent Item(s) (price may vary):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) (price may vary) | Item Details |
|---|---|
| LNR41170 |
|
