Assembly Cable DC Power to DCB Maestro

LU42215
LNR42215
Bone Mineral Density (BMD)
Other Bone Health
GE HealthCare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Flexible color coded multi-conductor cable
  • Easy to connect and disconnect
  • Very good conductivity
  • Longer life

Product Overview

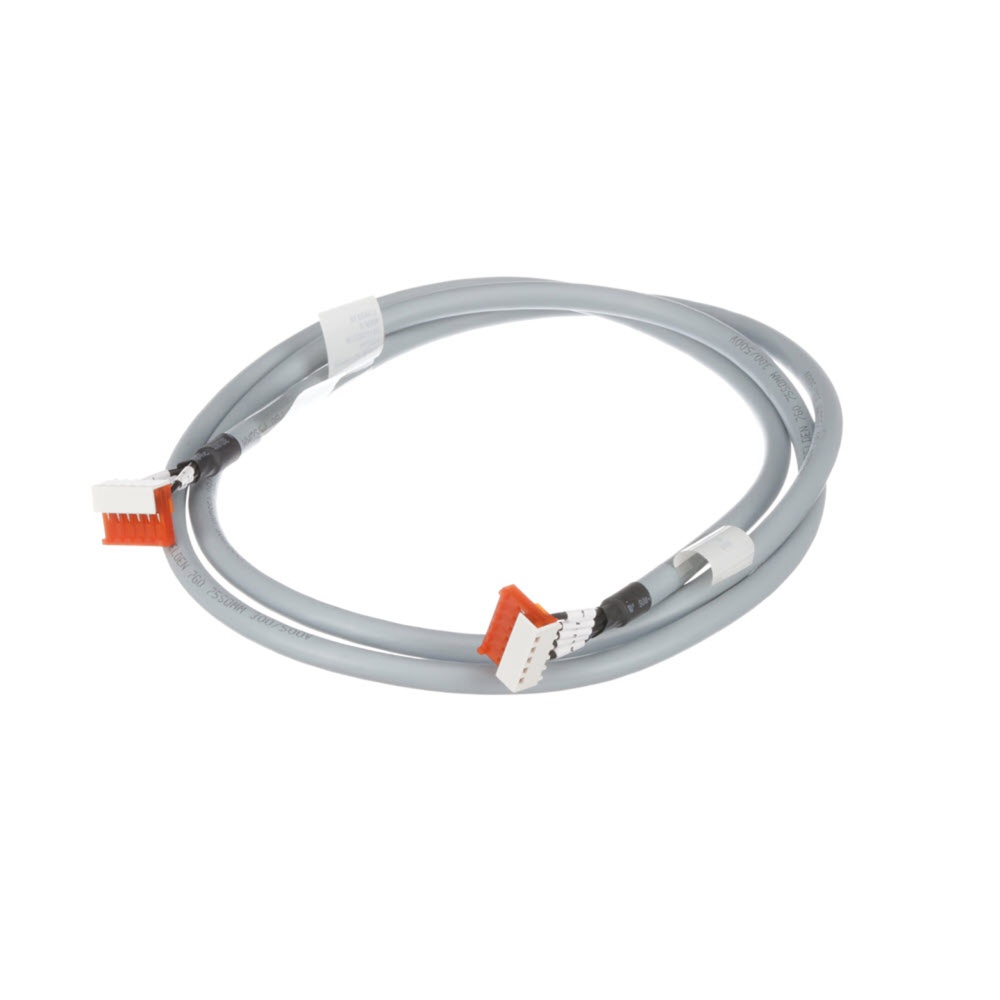

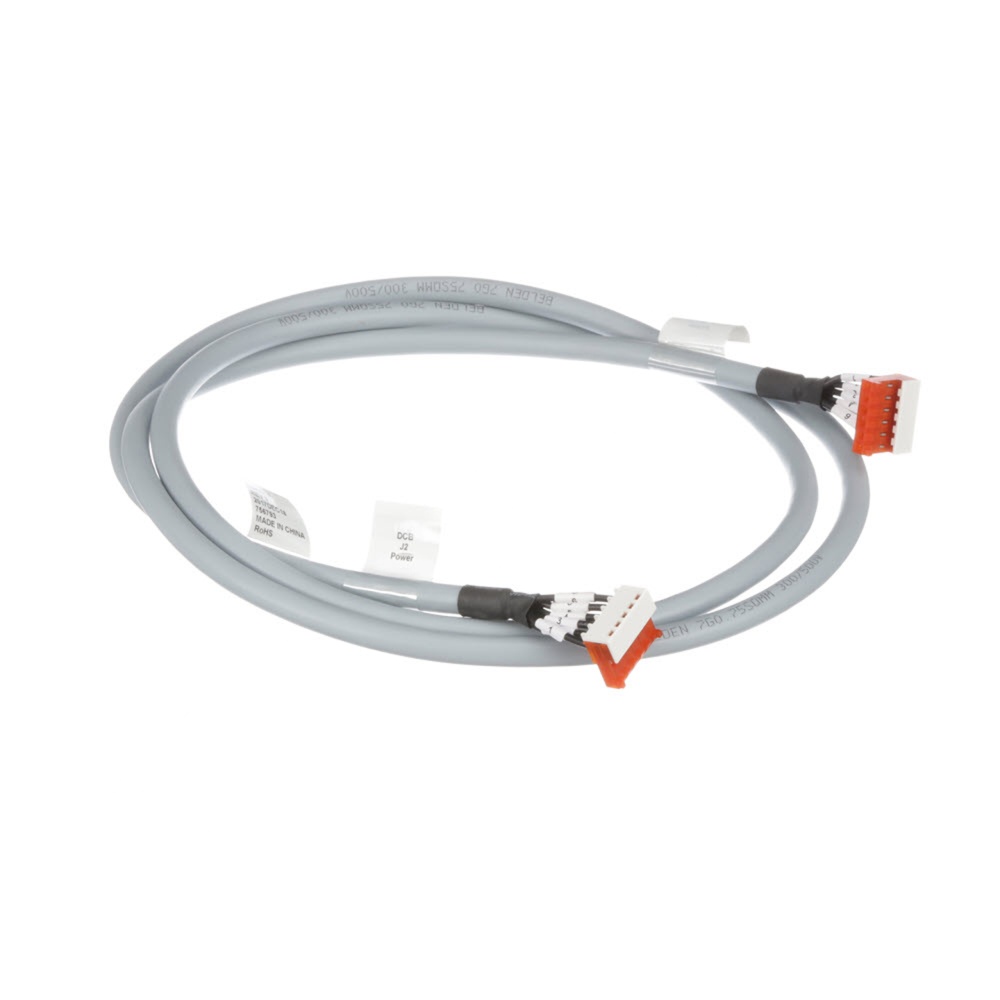

The DC Power to DAS Control Board (DCB) Cable Assembly is a custom designed part for connecting DC power supply to DAS Control Board (DCB). The cable assembly is 1.825 meters in length, has 7 conductors made of 19AWG stranded unshielded copper cable with a light weight 6-pin plug connector at each end of the cable. The cable assembly is sealed with heat shrink at the connector ends. The cable insulation is made up of high quality PVC material, having excellent flame resistance property, which makes it best suited for demanding applications. The cable offers excellent resistance to mineral oils, synthetic oils and water based coolants.

Substitute Parts (price may vary):

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
LNR42215

LNR42215
