LCD Assembly Achilles EXPII

LU43945
Bone Mineral Density (BMD)
Achilles
GE HealthCare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

  • Anti-Glare Color LCD with Touch Input
  • 3H Treatment offers High Impact Strength
  • Easy LVDS Interface
  • GE Gray N9 Color

Product Overview

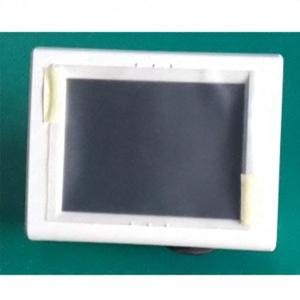

This LCD Display with touch panel is used on the GE's Achilles EXPII systems. The unit comprises of Stylus that can be used to operate the 6.5 inch Thin Film Transistor (TFT) Liquid Crystal Display. The display comes with an anti-glare surface and 3H hardness treatment for perfect color representations and impact resistance respectively. This display unit is encapsulated inside a cycoly C6200 casing which is designed with stylus holder and provides vertical adjustments per user's preference. The LCD comes with Low Voltage Differential Signaling (LVDS) that operates at low power and can run at very high speeds using simple twisted-pair copper cables. The Cycoloy C6200 material of the outer casing is a non-chlorinated, non-brominated flame retardant PC/ABS, offering balanced heat, flow and impact to meet various application needs. The complete assembly is designed with finer tolerances that ensures proper fit on the Achilles EXPII bone ultrasonometers sytem. The casing comes with GE Gray N9 color for pleasant aesthetic appearance. The complete display assembly will be shipped in suitable packaging to give adequate protection during transit.
