IEC Alarms Upgrade Kit with Control Board
| 2090844-001 | |
| 2080437-001 | |
| Maternal-Infant Care | |
| Giraffe/Panda Warmer | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Meets international standards for safety requirements
- Environmental contaminant latex free materials used
- Compatible with standard and lead-free assembly
- RoHS compliant
Product Overview

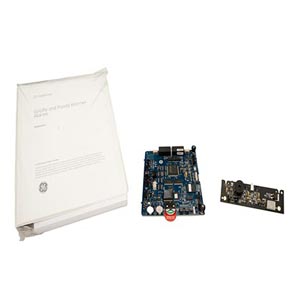

The IEC Alarms Upgrade Kit with Control Board consist of alarm lens, warmer alarm light PCA with white LED, warmer control board with FPGA GDC, label and Giraffe™ Warmer IEC alarm upgrade information manual. The alarm light board and lens are mounted on the warmer top of the electronics enclosure assembly using two captive screws. This Printed Circuit Assembly (PCA) is comprised of components including the alarm light raw PCB, resistor, capacitor, IC's, alarm buzzer, white LED, DIO-LED, Schottky diode, EMI-filter, transistor and board mounted connectors. The control board is also mounted on the warmer front of the electronics enclosure assembly using screws. This board is comprised of components including PCB, resistor, capacitor, fuse, IC's, DIO-LED, Schottky diode, EMI-filter, transistor, audio processor, main application processor, board mounted connectors, relay, power regulator, battery, crystals, connector header and programmed IC device. The alarms are indicated visually and audibly to the operator of the Giraffe™ and Panda™ Warmer products. When an alarm is triggered, alarm messages appear in the control panel, the indicator light at the top of the control panel housing is illuminated and audio tones sound. The alarms may be activated differently depending on the current operating mode. The visual alarms are provided via the LED array located on the alarm light board. The LED array is controlled on and off by the alarm control signal provided by the main application processor or audio processor on the control board. The audio alarm is generated by an audio amplifier also under control of the audio processor in response to a command from the main application processor.
Compatible Products
Giraffe Warmers
Panda iRes Warmers
Equivalent Item(s) (price may vary):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) (price may vary) | Item Details |
|---|---|
| 2080437-001 |
|
