In/Out Switch Cable 2332507
2332507 | |
X-Ray | |
Definium 8000 | |
GE HealthCare | |
2332507 | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- High optical performance
- Low Losses
- Short Switching Time
- High Input Impedance
Product Overview

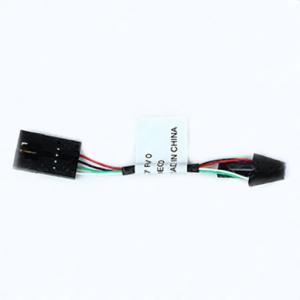

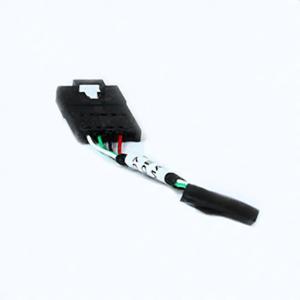

This 70 mm long cable assembly comprises of an optical switch connected to a 5 position connector using UL approved, high quality 26 AWG wires, color coded in white, green, black, red and are protected with Teflon insulation. The optical switch sensors has infrared emitting diode along with a NPN silicon photodarlington which are mounted side-by-side on converging optical axes in a black plastic housing. The darlington transistor helps in providing a very high input impedance for the circuit which also translates into an equal decrease in output impedance. This optical sensor has very good sensing capacity and can sense reflective objects at a distance of 5 mm. The white wire from the collector, green from emitter, black from cathode, red from anode goes to position 1, 2, 3 and 4 of the five position connector. This cable assembly comes with pre-labeled information about the part number and manufacturing country name. This optical cable assembly is used in the thunder table assembly which are compatible with GE's Revolution XRd, Definium 8000 X-Ray Systems.
