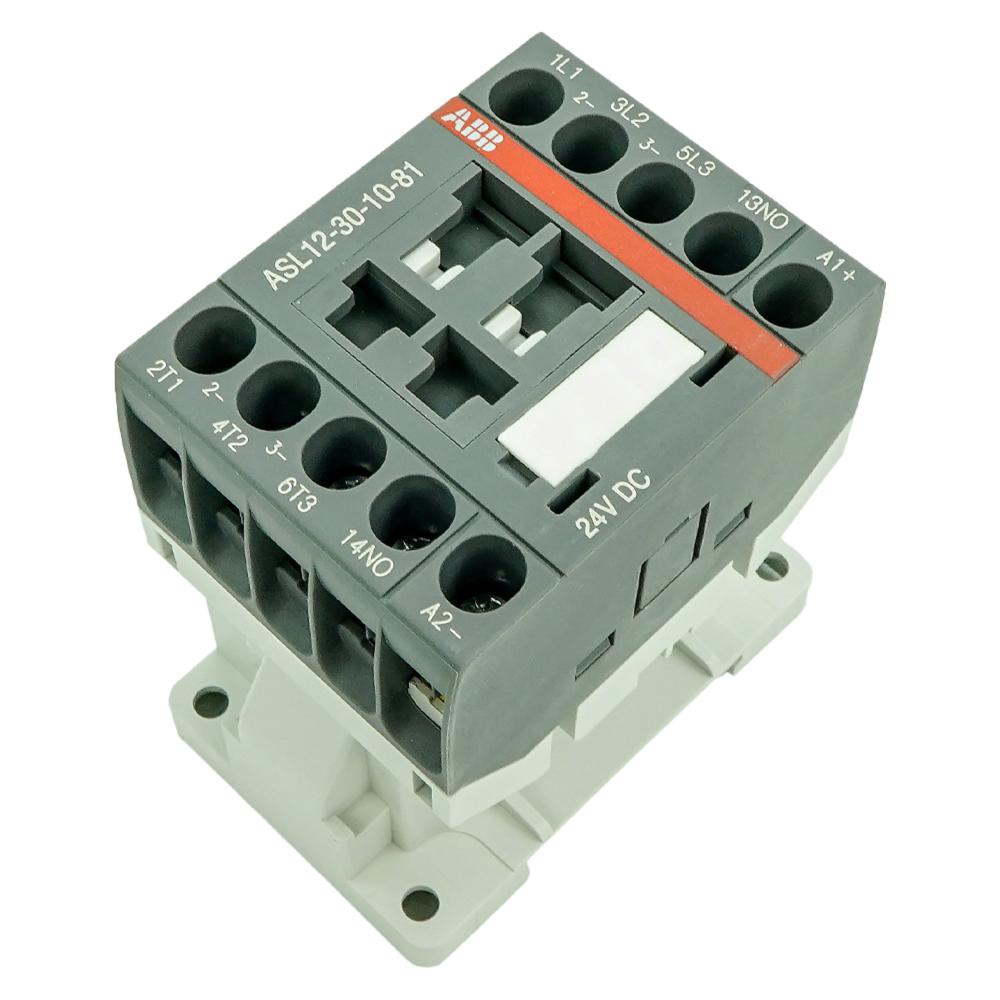

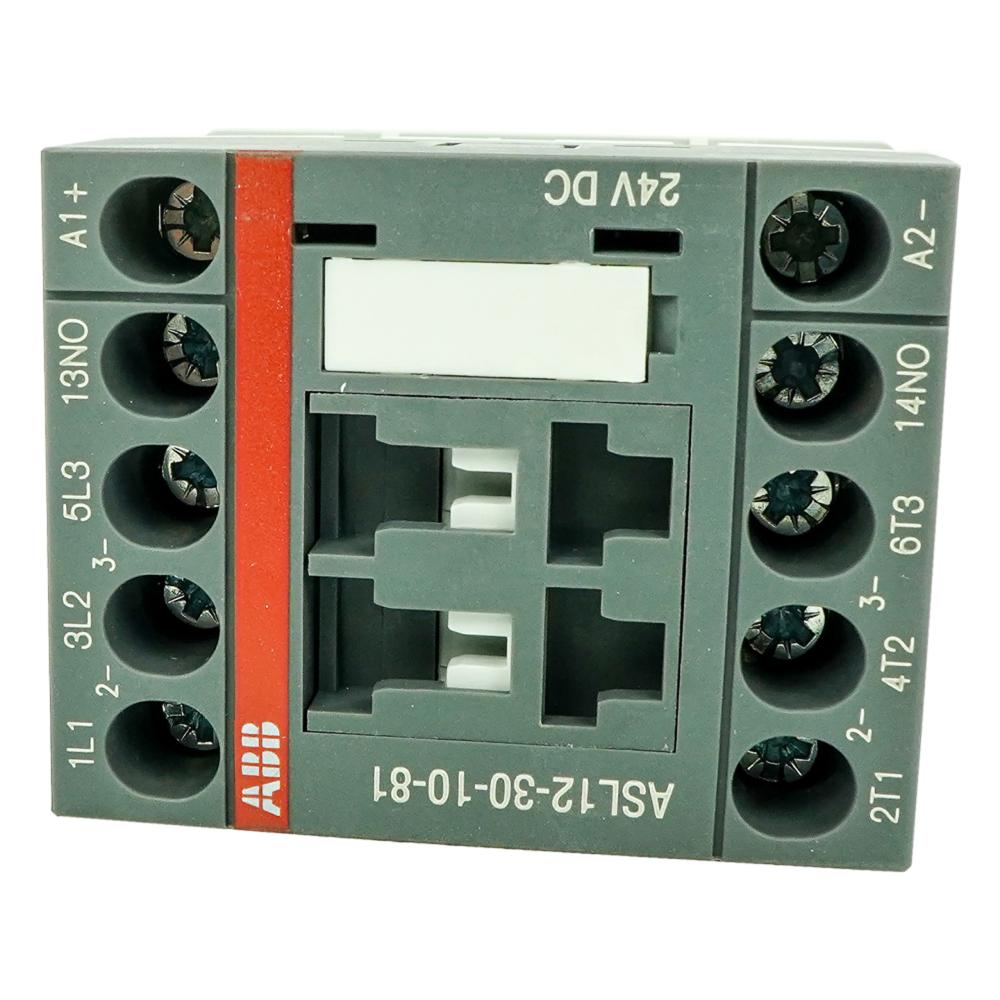

ABB 3 Pole Contactor
| 5421424 | |
| Computed Tomography (CT) | |
| Optima 660 | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- 3-pole contractors with screw terminal
- NO (Normally Open) Built-in auxiliary contact
- Low Coil Consumption

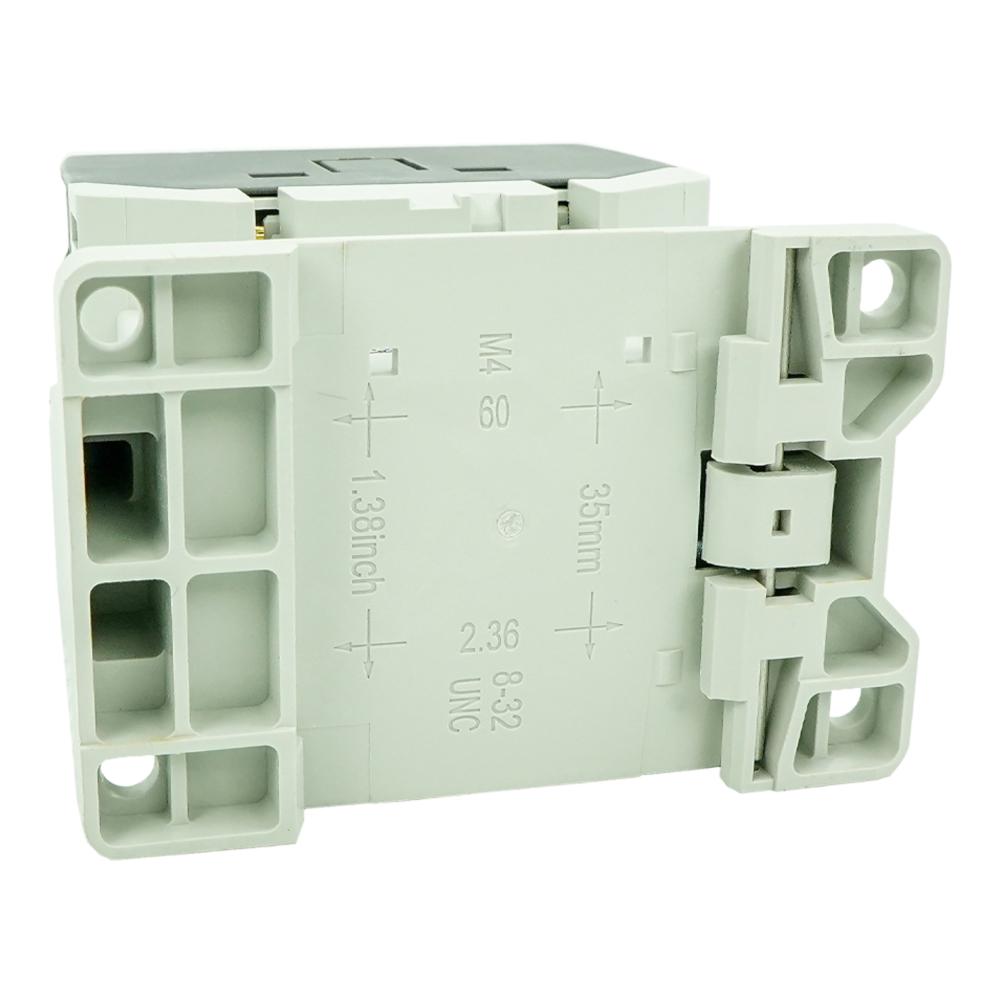

- Rail mounted, no tools required
Product Overview
ABB 3 Pole contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. This 1-stack 3-pole contactor is known as the block type design. The contactors have screw terminals, and contain 3 main poles and 1 built-in auxiliary normally open (NO) contact. The Control circuit of this contractor is DC operated with a solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected. The contractor is rail mounted and does not need any tools to be installed. This ABB 3 Pole Contactor is used with Computed Tomography (CT) systems.
