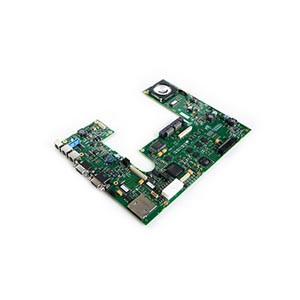

PCB Assembly MAC CPU RoHS


Item No.	801212-008
Equivalent Item(s) (price may vary) New "exact replacement" item (i.e., the new item may be used everywhere the old item is used).	801212-007
Product Category:	Diagnostic ECG
Product Family:	Resting ECG
Seller	GE HealthCare
Manufacturer Part No.	N/A

Add to Wish List

Login To Shop

Please select date

Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Taxes extra, details on the checkout page

Features

Compact design
High quality components
Reliable performance
RoHS Compliant

Product Specific Terms

Ultrasound probes replacement

The present price for replacement ultrasound probe is only valid subject to the Buyer returning the defective probe to GEHC by handing it over to the courier when the replacement probe is delivered. Should the Buyer fail to return the defective probe, GEHC will charge an additional fee consisting of 50 (fifty) % of the price of the replacement probe.
Replacement probe model ordered by the Buyer shall be the same as the defective probe model. Buyer cannot purchase through this website additional probes or replace its defective probe with another model of a probe even if it is compatible with its equipment model.
GEHC warrants that replacement ultrasound probes are free from defects in workmanship or materials under normal usage for a period of twelve (12) months from delivery and any claim should be submitted in writing within such period.
When the ultrasound probe is in stock, GEHC will make reasonable efforts to deliver it within a minimum of 2 (two) and maximum of 5 (five) working days. Should the probe not be in stock, the approximate estimated delivery date will be communicated to the Buyer by GEHC upon placement of the order.

Life Care Solutions spare parts

"Life Care Solutions" shall mean equipment from anesthesia, respiratory care, diagnostic cardiology, maternal & infant care, and monitoring solutions families.
"FRU" or "Field Replaceable Unit" shall mean an assembly of spare parts.
Customer is solely responsible for the installation of Life Care Solutions spare parts purchased through this website strictly in accordance with any applicable manufacturer's instructions contained in the user manual, service manual (if available) or any other supporting documentation. GEHC may perform such installation upon Customer's request and for additional fees.
Part availability and reference numbers are subject to change. For the most current information, including updates on a particular spare part, please contact GEHC.

Product Overview

The MAC CPU board is the main circuitry for the MAC-5500 electrocardiograph. The board is powered by an Atmel AT91RM9200 processor with PC Super Input/output controller and three peripheral microcontrollers. The board also have SDRAM and Flash memories and comes with other required interfaces and switches. This mainboard works only with Softwares V 10B and 9D. V 10B is used for MAC 5500 HD , V 9D is used for MAC 5500 non HD and MAC 3500. The board does not require any calibration or adjustment during installation. The External User I/O Connectors on the board are 9 pin female D-Sub for analog I/O, two 8-pin female Mini-DIN for powering external devices, a PS2 for keyboard and a VGA connector for display panel. This MAC 5500 mainboard 801212-008 replaces the 801212-007 mainboard and can be used with GE's MAC 5500 and MAC 3500 systems.

Compatible Products

Quick Links

View Product Details

MAC 3500
MAC 5500

‹ ›

MAC 3500

MAC 5500

Equivalent Item(s) (price may vary):

Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent Item(s) (price may vary)	Item Details
801212-007	PCB MAC CPU ROHS
